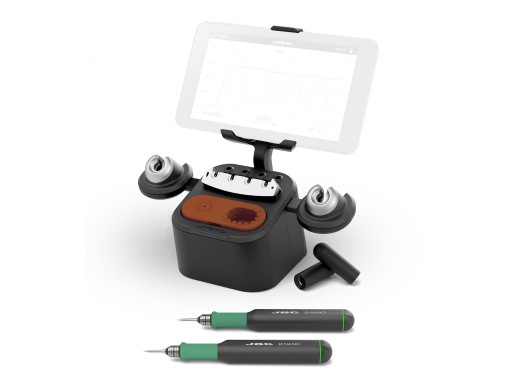

JBC B-iRON nano wireless soldering station without display
Details
This is the JBC B-iRON nano without a display
With the JBC B-iRON nano Precision soldering station, the soldering iron is no longer tied to the station with a cable. Instead, the iron is powered by a small embedded rechargeable battery. Even a very thin and flexible cable on your soldering iron can feel annoying, so JBC has developed a precision soldering iron without one. Additionally, the weight of the iron has been kept low to increase soldering comfort even further. Thus, you get the accuracy and control of a regular station, without a cable connected to your iron!
Instead of a regular display, the soldering station features a 7" tablet which connects directly over Bluetooth to the iron. Moreover, any device with Bluetooth functionality can be used to control the iron, you can even use your phone to connect to the iron using the provided app from JBC. This means that the B-iRON nano can also be bought without the tablet, you can find the tabletless version here. Using the included stand, the soldering tips can be exchanged while these are still hot. The stand also features a brass wool tip cleaner with a splat guard.
Finally, you can choose from a wide range of soldering tip options; the JBC B-iRON nano is compatible with the C115 soldering tip range, which is suitable for precision applications. The C115 tip range can be found using the blue button below.
The default 2-year warranty can be extended to 3 years by registering your device.
Model overview
| Battery | Soldering capacity | Soldering irons | Power | Price (with display) | Price (without display) | |
|---|---|---|---|---|---|---|
| B-iRON nano | 7.4 V / 120 mAh | 120 small joints | 1 | 15 W | ||
| B-iRON DUAL nano | 7.4 V / 120 mAh | 2 x 120 small joints | 2 | 15 W | ||
| B-iRON tweezers | 7.4 V / 180 mAh | 60 joints | 1 | 15 W | ||
| B-iRON iron rework | 7.4 V / 180 mAh & 120 mAh | 60 & 120 joints | 2 | 15 W | ||
| B-iRON 100 | 7.4 V / 180 mAh | 100 medium joints | 1 | 15 W | ||
| B-iRON 500 | 7.4 V / 750 mAh | 500 medium joints | 1 | 24 W | ||
| B-iRON 500 DUAL | 7.4 V / 750 mAh | 2 x 500 medium | 2 | 24 W |
Specifications
| Power | 15 W |
| Temperature range | 100 ℃ - 450 ℃ |
| Tip system | Active |
| Heating time | ~ 3 sec |
| Charge time | 30 minutes |
| Connectivity | Bluetooth Low Energy (BLE) |
| Dimensions | 202 x 200 x 211 mm |
| Weight | 1.94 kg |
| Weight (iron) | 32 g |
Accessories
The B-iRON nano comes by default with:- 7" B·IRON tablet
- Wireless iron nano
- Charging base
- JBC C115-101 soldering tip
- USB-A to Micro-USB cable
- Brass wool
- Power cord
Expansion kits
The B-iRON nano comes by default with 1 iron and 1 holder, however it is possible to expand the amount of irons and holders. You are not limited to buying the same iron, every combination of irons work.Pros and cons
- Freedom of wireless soldering
- Wide range of tip options
- High precision
- Requires recharging
Downloads
| B·IRON NANO MANUAL |  (14.23 MB) | Download |
