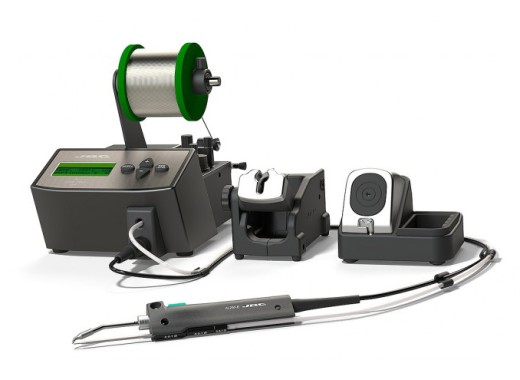

JBC AL-2A auto-feed soldering station

The JBC AL-2A auto-feed soldering station has a maximum output 130W and is ideal for situations in which soldering requires a free hand. The soldering station automatically feeds the amount of solder programmed, due to this consistency is assured. There is a possibility to select the continuous or the step-by-step operation mode. When the iron is placed into the stand, the sleep&hibernation mode will be turned on. This will save energy and makes sure that the tip reaches room temperature as fast as possible. The temperature can be easily set between 90℃ & 450℃ and five fixed temperatures can be stored. Additonally, the solder is compatible with a wire diameter of 0.4 to 1.8mm and a solder wire length of 1 to 60mm. The length and speed of the feed can be selected. The AL250-B Auto-Feed Iron is included as well as the stand for the AL250 and a conical bent 1⌀ C250403 tip.
This soldering station can be used with the C250 soldering tips.

Specifications

Power	130W
Voltage	23.5V
Selectable temperature	90℃ - 450℃
Tip resistance	< 2Ω
Dimensions	195 x 200 x 240 mm
Weight	5.8 kg

Buy your C250 tips here

Accesoires

The JBC AL-2A auto-feed soldering station is delivered including:

• Auto-feed soldering station
• Auto-feed soldering iron and stand
• ESD tip cleaner
• Solder reel stand
• Metal brush
• Sponge
• Allen key 2.5mm
• Power cord
• Manual
