185.95 €185.95 Excl. VAT
This product is retired
  •
Product number: ELE001506

Be the first to review this product

Details

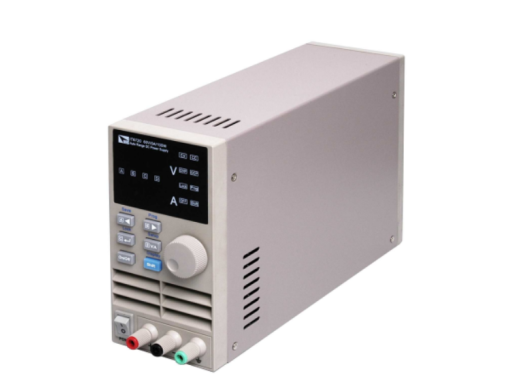

The Itech IT6720 is a DC lab power supply with a very high price/quality ratio. This lab power supply has one output and can supply up to 60V, 5A and 100W. The IT6720 has automatic control over the slew rate of voltage and current. Furthermore, there is little noise and ripple in the signals emitted by the power supply. The device also has voltage, current and temperature protections (overvoltage, overcurrent, overtemperature protection) so that the device stops immediately when one of these variables exceeds the set value.

The screen (VFD) is clear and therefore easy to read. Furthermore, there are a number of LEDs present that indicate different modes, such as constant voltage or current and the previously mentioned protections. Set values of current and voltage can be stored in the device for later recharging. Figure 3 shows all the options of the IT6720.

Specifications

Output voltage 0-60 V
Output current 0-5 A
Power 0-100 W
Difference displayed values ±0.05 % + 10 mV
Difference displayed values ±0.1 % + 2 mA
Ripple <2 mV rms and <5 mA rms
Storage 400
Dimensions 88 mm x 175 mm x 282 mm
Weight <2.5 kg

Accessories

This power supply comes with:

  • Power cord
  • User's manual

Downloads
