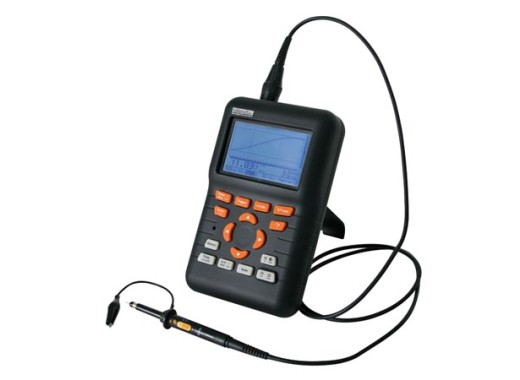

Velleman HPS50 handheld oscilloscope
Details
This compact handheld oscilloscope is powerful for its size and easy to use. The oscilloscope has a wide bandwidth of 12 MHz and mates a sample rate of 40 MHz. Furthermore, the vertical resolution of this oscilloscope is 8 bits. These specifications are spacious enough for all applications you would like to use this compact oscilloscope for.
The measurement possibilities are extensive. For example, with this device you can use a DVM and frequency readout, and you can shift the signals across the x and y axes. It is also possible to do audio power measurements up to 32Ω. With each measurement, the trigger level and mode can be easily set and there is room to store 2 signals. Via the USB interface, data can also be transferred to a PC.
Specifications
| Channels | 1 |
| Bandwidth | 12 MHz |
| Sample rate | 40 MS/s |
| Vertical resolution | 8 Bits |
| Voltage distribution | (5 mV to 20 V)/Division in 12 steps |
| Time distribution | (50 ns to 1 hour)/Division in 34 steps |
| Sensitivity | 0.1 mV |
| Max. input voltage (x10 probe) | 600 VDC |
| Trigger modes | Run, Normal, Once, Roll |
| Signal storage | 2 signals |
| Interface | USB |
| Screen | Backlight LCD (192x112 Px) |
| Power supply | Li-ion battery (7.4V/1050mAh) |
| Weight | 440 g |
| Dimensions | 110x175x40 mm |
Accessories
The HPS50 comes with:- Adapter
- Measuring probe (x1/x10)
- USB cable
Downloads
| HPS50 manual |  (7.27 MB) | Download |
| oscilloscopes_cross_reference_uk_rev1 | (1.36 MB) | Download |
