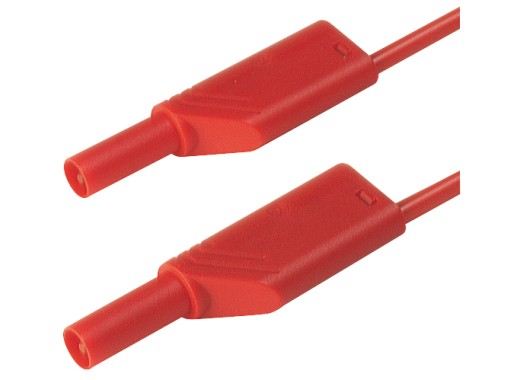

Hirschmann MLS WS 25/2.5 Red
Details
The MLS cables of Hirschmann are suitable for various purposes. The cables have a conduction area of 2.5 mm2 that can manage voltages up to 1000 V and currents up to 32 A. The 4 mm pins are the standard for power supplies, multimeters and similar products, and have a contact resistance of only 6 mΩ. This is thanks to the nickel-coated copper beryllium contacts. The insulation contains colour coding making it easy to notice when damaged. The cables are very flexible due to the braided structure and they are also double insulated.
The cables are available in the colours red and black, and lengths of 25, 50, 100 or 200 cm. On this page the red cable of 25 cm can be ordered.
Specifications
| Cable type | LEH-XY |
| Contact resistance | 6 mΩ |
| Max. voltage & current | 1000 V & 32 A |
| Length | 25 / 50 / 100 / 200 cm |
| Conductor diameter | 2.5 mm2 |
| Braided structure | 320 x 0.10 mm wire |
| Housing material | PVC |
