Hirschmann MLS WG safety cables
Details

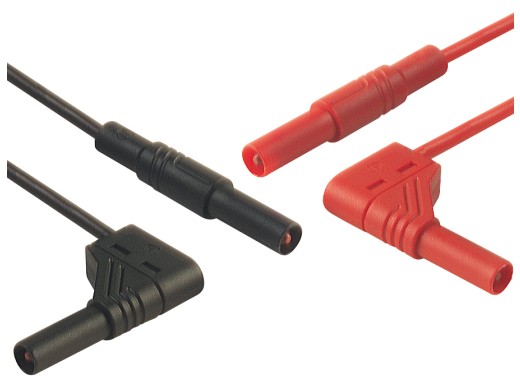

These touch-safe safety leads from Hirschmann have a single 90 degrees connector and are suitable for all purposes. The cables have a surface of 1 mm2 and can handle a voltage of 1000V and a current of 16A. The 4 mm pins are the conform standard for power supplies, multimeters and such. The contact resistance is only 22mΩ which is partly due to the Nickel coated copper-beryllium contacts. The insulation has a color indication so it is easy to see if it is damaged. The cables are double isolated and very flexible due to the braided structure.
The cables are available in several colors and have a length of 100cm. You can select the different options in the top right.
Specifications
| Contact resistance | 22 mΩ |
| Max. voltage & current | 1000 V & 16 A |
| Rated current | 16 A |
| Length | 100 cm |
| Conductor surface | 1 mm2 |
| Braided structure | 259 * 0.07 mm cable |
| Material | PVC |
Pros and cons
- 90 degree angled connector
Downloads
| Hirschmann MLS WG datasheet |  (76.8 KB) | Download |
