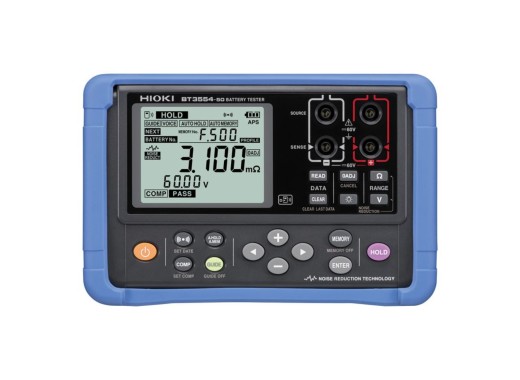

Hioki BT3554-91 battery tester (with straight pin-type test leads & Bluetooth)
Please note: The third picture shows angled ping-type test leads, which are not included in this set.
Details
The Hioki BT3554-91 battery tester set consists of a BT3554-50 portable battery tester, Z3210 Bluetooth adapter, the 9465-10 straight pin-type test leads and other accessories. This battery tester can only be used with lead-acid batteries and is designed to measure the DC voltage, the AC resistance at 1kHz and the temperature. Due to the impedance measurement method, the measurements can be done without disconnecting the battery under testing.
The battery tester supports two voltage ranges (1mV to 6V and 10mV to 60V) and four resistance ranges (1μΩ to 3.1mΩ, 10μΩ to 31mΩ, 100μΩ to 310mΩ, and 1mΩ to 3100Ω), making this battery tester suitable for a wide range of battery capacities. Its fast measurement speed (under 2 seconds), the noise reduction function and the comparator function make the BT3554-50 ideal for quick and easy battery assessment. Due to the small form factor, the BT3554-50 battery tester is a great option for use in hard-to-reach areas and for fieldwork.
The Hioki BT3554-50 tester has a USB interface for connection to a PC to control the battery tester, transfer and process measurement values, and storage on an external USB drive. The Z3210 Bluetooth adapter is also included in this set, for wireless control and data transfer.
Models
The sets of the BT3554 series include different measuring cables and differ in the inclusion of the Z3210 Bluetooth adapter.
| Model | BT3554-51 | BT3554-52 | BT3554-91 | BT3554-92 |
|---|---|---|---|---|
| Measuring cable | 9465-10 (straight) | L2020 (angled) | 9465-10 (straight) | L2020 (angled) |
| Bluetooth adapter (Z3210) included? | No |
No |
Yes |
Yes |
| Price |
Specifications
| Voltage ranges | 1 mV to 6 V and 10 mV to 60 V |
| Resistance ranges | 1 μΩ to 3.1 mΩ, 10 μΩ to 31 mΩ, 100 μΩ to 310 mΩ, and 1 mΩ to 3100 Ω |
| Temperature range | −10.0 °C to 60.0 °C |
| Resolution | Voltage: 10 µV Resistance: 1.0 µΩ Temperature: 1.0 °C |
| Accuracy | Resistance: 1.0% Voltage: 0.08% Temperature: ± 1.0 °C |
| Measurement time | 100 ms |
| Connectivity | USB, Bluetooth adapter (Z3210) |
| Other functions | Comparator, auto-hold, auto-memory |
| Display | LCD (FSTN type, black-and-white) |
| Dimensions | 199 x 132 x 61 mm |
| Weight | 0.96 kg |
Options
These options for the BT3554 series battery testers are available at Eleshop.
| Angled test leads (L2020) | Angled test leads are best for tight spaces, better cable management, and safer handling. | |
| Straight test leads (9465-10) | Straight test leads are great for deep connectors, open spaces, and quick testing. | |
| Replacement tip for leads (suitable for both 9465-10, 9465-11 & L2020) | Replacement tips to extend the test leads lifespan. | |
| Straight test leads with 2 parallel tips (9772) | Straight test leads with two parallel tips ensure stable and precise contact for accurate measurements. | |
| Replacement tip for 9772 leads (9772-90) | Replacement tips to extend the test leads lifespan. |
Accessories
The BT3554-91 battery tester set comes with:
- 1x Z3210 Bluetooth adapter
- 1x Straight pin-type lead 9465-10
- 1x Carrying case (C1014)
- 1x Protector (Z5041)
- 1x Fuse set (Z5050)
- 1x Zero adjustment board
- 1x Neck strap
- 1x USB cable
- 1x Application software CD (GENNECT One)
- 8x AA alkaline battery (LR6)
Pros and cons
- No need to disconnect the battery under testing
- Not suitable for Lithium-ion batteries
