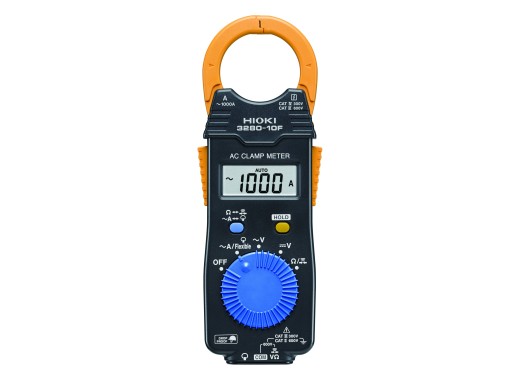

Hioki 3280-10F AC current clamp
Details
The Hioki 3280-10F is an AC current clamp. The clamp can measure AC current up to 1000A, voltage up to 600V, measure resistance and check continuity in the 50Hz to 60Hz range. The clamp has a 33 mm diameter. It is perfect for technicians looking for a compact, high-quality, reliable, and rugged device. The Hioki 3280-10F has exceptional build quality, is built to withstand up to 1 meter onto concrete and remains operational in extreme temperatures ranging from 25°C to 65 °C. Additionally, the device features a 4199-count LCD. Finally, the current clamp can hold data and automatically powers off after 30 minutes of inactivity.
Specifications
| Multimeter specifications | |
| Display resolution | 4199 counts |
| Max. DC voltage | 600 V (±1.0% ±3) |
| Max. AC voltage | 600 V (±1.8% ±7) |
| Max. AC current | 1000 A (±1.5% ±5) |
| Max. resistance | 42.00 MΩ (±2.0% ±4) |
| Frequency characteristics | 50 Hz - 60 Hz |
| Operating temperature range | −25 °C - 65 °C |
| True-RMS | No |
| Clamp size | 33 mm |
| Other features | Continuity, data hold, automatic power-off |
| Power | Coin type lithium battery (CR2032) 120 hours |
| Display | LCD |
| Dimensions | 57 x 175 x 16 mm |
| Weight | 100 g |
Accessories
The Hioki 3280-10F comes with:
- Carrying case
- Test lead L9208
- Coin type lithium battery (CR2032)
Pros and cons
- High-quality
- Rugged
- Capable of operating in extreme temperatures
- No True-RMS
- Limited functionality
Downloads
| Hioki 3280-10F user manual |  (1.82 MB) | Download |
| Hioki 3280-10F data sheet | (2.18 MB) | Download |
