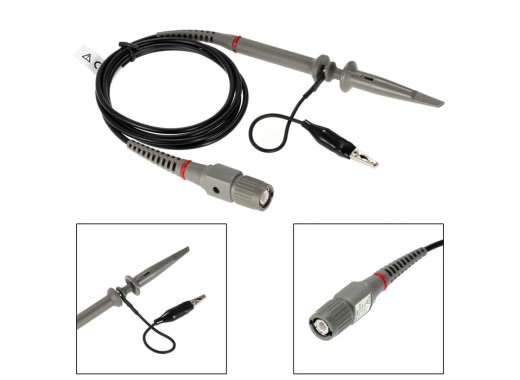

Hantek PP200 probe
Details
The Hantek PP200 is a simple, passive, low-impedance 200 MHz probe suited for a variety of applications. The attenuation can be selected to either 1x or 10x. The probe is calibrated for use in devices with an input impedance of 1MΩ paralleled by 20 pF.
Specifications
| Attenuation | 1x or 10x |
| Input Impedance | 1MΩ/85pF-115pF (1x), 10MΩ/18,5pF-22,5pF (10x) |
| Max input voltage | 600 V |
| Bandwidth | 1x: 5MHz, 10x up to 200MHz |
| Probe body length | 95 mm |
| Cable length | 1200 mm |
| Weight | 55 g |
Pros and cons
- Great price/performance ratio
