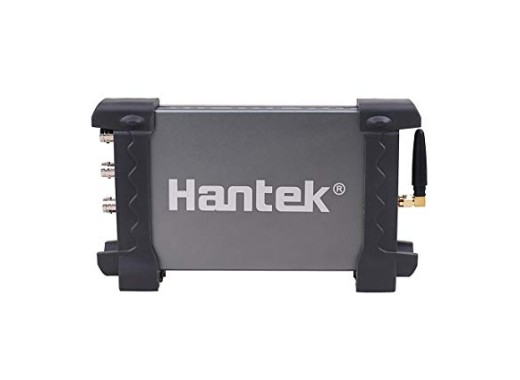

Hantek IDSO1070A handheld oscilloscope
Details
The Hantek IDSO1070A is a 2 channel 70 MHz WiFi oscilloscope. The IDSO1070A is mostly geared towards tablet computers. Therefore, it is a small, lightweight, portable and battery powered oscilloscope. Data can be read from iOS, Android or PC (Windows). Because this scope lacks a wired connection it is excellent for use in isolated measurements. However, it is possible to connect the unit with the included USB cable to charge the device or read data. The used communication protocol between the oscilloscope and the tablet is freely available, so it is easy for third-party developers to develop applications for other purposes.
Specifications
| Horizontal scale | 5 ns/div - 500 s/div |
| Maximal voltage | 35 V (peak) |
| Vertical resolution | 8 bits |
| Sample rate | 150 ps |
| Automatic measurements | Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot, Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle |
| Connectivity | USB 2.0 |
| Dimensions | 190 x 100 x 35 mm |
| Weight | ~700 g |
Accessories
These scopes come supplied including:
- Probes
- Manual
For more information the detailed manual can be downloaded below.
Pros and cons
- Wireless
- Handheld
- Low bandwidth
Downloads
| Hantek IDSO1070 Series Manual |  (3.24 MB) | Download |
