Hantek HDM3075B multimeter
Details

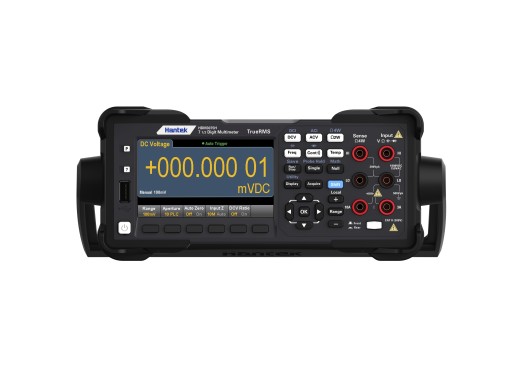

Note: The images are of the HDM3075H, as both multimeters are visually comparable, except the HDM3075B lacks a GPIB port.
The Hantek HDM3075B is a 7½ digit benchtop multimeter with a 0.1pA current resolution and 10nV voltage resolution. The multimeter has both 3A and 10A front inputs, which can perform DC measurements up to 1000V, and True-RMS AC measurements up to 750V. Furthermore, the HDM3075B can perform math functions such as dB/dBm scaling, measurement statistics, and setting limits. The multimeter has a maximum reading rate of 50K readings per second; these can be viewed using the histogram or trend chart functions, which are helpful for transient analysis. The HDM3075B model includes LAN, USB-B, and RS232 interfaces, which can be used to remotely control the multimeter.
Specifications
| Display resolution | 20,000,000 counts, 7 ½ digits |
| Max. AC voltage | 750 V |
| Max. DC voltage | 1000 V |
| Max. AC current | 10 A (front panel only) |
| Max. DC current | 10 A (front panel only) |
| Max. resistance | 100 MΩ |
| Max. capacitance | 100 µF |
| Frequency | 3 Hz - 300 KHz |
| Other functions | 2-wire resistance, 4-wire resistance, diode, continuity, capacitance, frequency, period, temperature |
| True-RMS | Yes |
| Data logging | Yes |
| Display | 4.3" 64K LCD |
| Connectivity | LAN, USB, RS232/485 |
Accessories
The HDM3075B comes with:
- USB-B cable
- Power cable
- HT325 multimeter probes
Pros and cons
- 7½ digits
- High resolution
- Competitively priced
Downloads
| HDM3000 User manual |  (2.8 MB) | Download |
