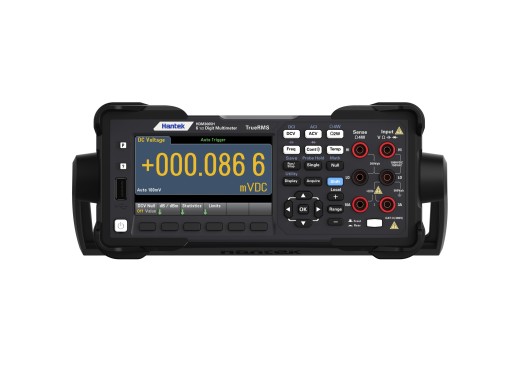

Hantek HDM3065H multimeter
Details
The Hantek HDM3065H is a 6 ½ digits stand-alone multimeter with a 4.3" display. This multimeter has various measuring capabilities with great accuracy due to the 0.1µV resolution and also offers double-display measurements. With 30.000 measurements per second, you get a good and accurate capture of transient signals.
Save up to 10.000 measurements on the internal memory. The HDM3065H multimeter uses multiple Math functions and image functions to simplify data analysis, such as: Standard, Bar chart, Histogram, Trend chart and data statistic functions
For a 5 ½ digit multimeter alternative see the Hantek HDM3055.
Model overview
| Model | HDM3065 | HDM3065B | HDM3065H |
|---|---|---|---|
| Connectivity | USB (host/device), RS232 | USB (host/device), RS232, LAN | USB (host/device), RS232, GPIB, LAN |
| Input terminal | Front panel | Front & rear panel | Front & rear panel |
| Price |
Specifications
| Display resolution | 2 000 000 counts, 6 ½ digit |
| Max. AC voltage | 750 V |
| Max. DC voltage | 1000 V |
| Max. AC current | 10 A |
| Max. DC current | 10 A |
| Max. resistance | 100 MΩ |
| Max. capacitance | 100 µF |
| Frequency | 1 Hz - 300 kHz |
| Temperature | 0 - 150 °C |
| Other functions | Diode, Continuity, Min/Max record, Peak/Data hold |
| True-RMS | Yes |
| Data logging | Yes |
| Display | 4.3" TFT-LCD |
| Dimensions | 266 x 311 x 111 mm |
| Weight | 4.7 kg |
Accessories
The Hantek HDM3065H is supplied including:
- Power cord
- Test leads
- USB cable
Pros and cons
- Dual measuring
- 0.1µV accuracy
Downloads
| Hantek HDM3000 Quickguide |  (1.28 MB) | Download |
| HDM3000 user manual | (3.02 MB) | Download |
| HDM3065 series datasheet | (682.25 KB) | Download |
