The Hantek 2D82 is a combination instrument designed specifically for automotive use. It features oscilloscope, waveform generator and multimeter functions. In addition to this, the device has some automotive diagnostics built-in.
The 2D82 is battery powered and can be charged with the supplied usb-type-C charging cable. This cable is also suited for data transfer with either a PC or a mobile phone.
Automotive functions:
- Ignition diagnostics
- Air diagnostics
- Injector diagnostics
- Sensor diagnostics
- Bus diagnostics
- Injector diagnostics
- Charge diagnostics

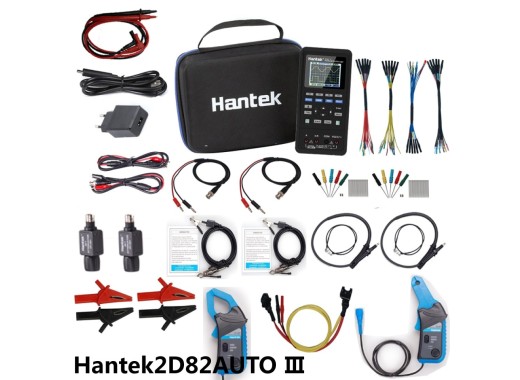

The Hantek 2D82 comes in two variants; Type II and Type III. Both feature the same device but differ in the amount and type of accessories. The included accessories can be found below.
Specifications
| Oscilloscope function: | |
| Bandwidth: | 80 MHz |
| Channels: | 2 |
| Sample rate: | 250 MSa/s (single-channel), 125 MSa/s (dual-channel) |
| A/D converter | 8 bit |
| Vertical scale: | 10 mV/div - 10V/div |
| Waveform generator function: | |
| Frequency | Sinus(1Hz - 25MHz), Square(1Hz - 10 MHz), Ramp(1Hz - 1 MHz), Trapezoid(1Hz - 5 MHz) |
| Sampling | 250 MSa/s |
| Output Impedance | 50 Ω |
| Multimeter function: | |
| Max resolution: | 4000 counts |
| Max input voltage: | AC 600V, DC 800V |
| Max input current: | AC 10A, DC 10A |
| Input Impedance | 10 M Ω |
| Other specifications: | |
| Display | 2,8 Inch (320x240) |
| Battery | 2 x 2600mA |
Pros and cons
- Many functions in one device
- Includes a lot of accessories
- Built-in self test
Downloads
(527.09 KB)
(14.54 MB)
