Hakko T36 series soldering tips

The Hakko T36 soldering tips are most suitable for the Hakko FN-1010 soldering station. Please pick the desired size and type above.

Each soldering tip contains an IoT (Internet of Things) memory chip and its characteristics can be collected by the FN-1010 and saved by any computer system. The following characteristics can be collected:

• Tip shape
• Tip serial number
• Number of loads
• Total time of power supplied
• Load sensitivity
• Type of solder alloy (Lead-Free / Lead)
• Count alarm

Do you need advice on which soldering tip is best for your soldering task? Take a look at Hakko's tip selection tool.

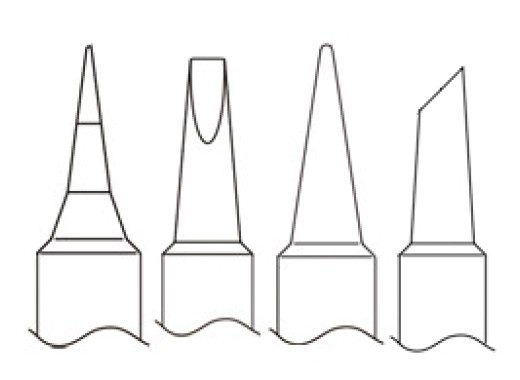

Model overview

Conical	Model	Radius tip (mm)	Length tip (mm)	Angle	Price	Stock
	T36-B	∅0.2 mm	7.5 mm	-	37.5 €37.50 Excl. VAT
	T36-B2	∅0.5 mm	10 mm	-	37.5 €37.50 Excl. VAT
	T36-BL	∅0.2 mm	12 mm	-	37.5 €37.50 Excl. VAT
Conical thin	Model	Radius tip (mm)	Length tip (mm)	Angle	Price	Stock
	T36-I	∅2.0 mm	9.5 mm	-	37.5 €37.50 Excl. VAT
	T36-ILS	∅2.0 mm	13.5 mm	-	42.5 €42.50 Excl. VAT
Bevel	Model	Diameter tip (mm)	Length tip (mm)	Angle	Price	Stock
	T36-BC1	∅1.0 mm	11.5 mm	45°	37.5 €37.50 Excl. VAT
	T36-BC2	∅2.0 mm	11.5 mm	45°	37.5 €37.50 Excl. VAT
	T36-BC3	∅3.0 mm	10 mm	45°	37.5 €37.50 Excl. VAT
	T36-C1	∅1.0 mm	12 mm	60°	40 €40.00 Excl. VAT
	T36-C4	∅4.0 mm	11.5 mm	45°	37.5 €37.50 Excl. VAT
Chisel	Model	Surface area tip (mm)	Length tip (mm)	Angle	Price	Stock
	T36-D08	0.5 mm x 0.8 mm	9.5 mm	-	37.5 €37.50 Excl. VAT
	T36-D16	0.5 mm x 1.6 mm	10 mm	-	37.5 €37.50 Excl. VAT
	T36-D24	0.5 mm x 2.4 mm	10 mm	-	37.5 €37.50 Excl. VAT
	T36-D52	1.2 mm x 5.2 mm	7.5 mm	-	39 €39.00 Excl. VAT
	T36-DL32	0.5 mm x 3.2 mm	10 mm	-	37.5 €37.50 Excl. VAT
Conical bent	Model	Radius tip (mm)	Length tip (mm)	Angle	Price	Stock
	T36-J02	∅0.2 mm x 3.5 mm	11 mm	30°	37.5 €37.50 Excl. VAT
	T36-JS02	∅0.2 mm x 1.6 mm	7.9 mm	30°	37.5 €37.50 Excl. VAT
Knife	Model	Surface area tip (mm)	Length tip (mm)	Angle	Price	Stock
	T36-K	2.0 mm x 4.7 mm	15 mm	45°	45 €45.00 Excl. VAT
