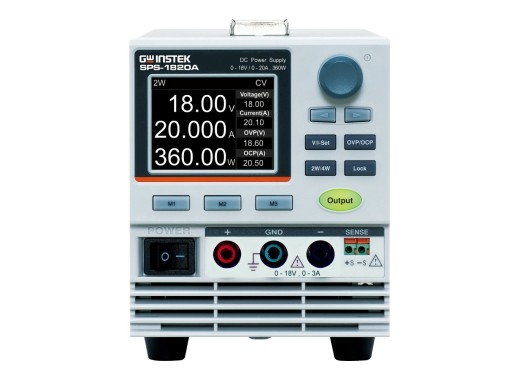

GW Instek SPS-1820A power supply
Details
The GW Instek SPS-1820A is a high-quality, single-channel, switching DC power supply designed for reliable use in educational, laboratory and industrial environments. The power supply has a voltage range of 0 to 18V and a current range of 0 to 20A, making it suitable for powering electronic assemblies and production test setups. The device uses front-panel safety terminals for convenient bench connections, while the rear terminals support permanent wiring.
Remote sensing with selectable 2-wire or 4-wire operation compensates for voltage drops in the test leads. The SPS-1820A also provides constant-voltage and constant-current operation, three save/recall memories and a clear 2.4-inch colour display. Finally, there are standard safety features present, such as: panel locking, output On/Off control, and adjustable over-voltage, over-current, and over-temperature protection.
Model overview
| Model | SPS-1230A | SPS-1820A | SPS-2415A | SPS-3610A | SPS-606A |
|---|---|---|---|---|---|
| Voltage range | 0 - 12 V | 0 - 18 V | 0 - 24 V | 0 - 36 V | 0 - 60 V |
| Current range | 0 - 30 A | 0 - 20 A | 0 - 15 A | 0 - 10 A | 0 - 6 A |
| Resolution | 10 mV / 2 mA | 10 mV / 2 mA | 10 mV / 1 mA | 10 mV / 1 mA | 10 mV / 1 mA |
| Ripple | ≤5 mVrms / ≤30 mArms | ≤5 mVrms / ≤10 mArms | ≤5 mVrms / ≤10 mArms | ≤5 mVrms / ≤5 mArms | ≤5 mVrms / ≤3 mArms |
| Price |
Specifications
| Total power | 360 W |
| Outputs | 1 |
| Output switch | Yes |
| Protection | OVP, OCP, OTP |
| Interfaces | Remote I/O |
| Display | 2.4" TFT LCD |
| Dimensions | 107 x 124 x 363 mm |
| Weight | 3.6 kg |
Accessories
The SPS-1820A comes with:
- Power cable
- GTL-203A test lead
- GTL-201A ground lead
Pros and cons
- Remote sensing function
- Safety terminals
- Single-channel only
Downloads
