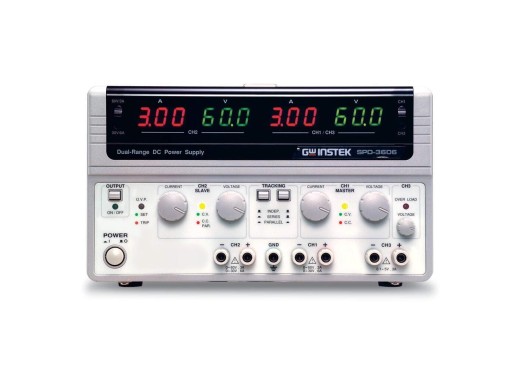

GW Instek SPD-3606 power supply
Details
The GW Instek SPD-3606 is a versatile 3-channel power supply designed to meet a wide range of requirements. It provides a total power output of 375W, ensuring sufficient power for various applications. The power supply features three channels. The first two channels have a dual range and have an output voltage/current of 30V/6A or 60V/3A. Furthermore, CH1 and CH2 can be configured to run independently, in series with each other (60V/6A or 120V/3A), or parallel (30V/12A or 60V/6A). Additionally, the voltage on CH3 is adjustable between 0.1V and 5V, providing precise control over the output. Furthermore, the device also has a output on/off switch.
Specifications
| Total power | 375 W |
| Outputs | 3 |
| Output switch | Each channel |
| Voltage range | CH1/CH2: 0 - 30 V/0 - 60 V CH3: 0.1 - 5 V |
| Current range | CH1/CH2: 0 - 6 A/0 - 3 A CH3: 3 A |
| Resolution | 100 mV / 10 mA |
| Ripple | 5 mVrms (5 Hz - 1 MHz) 50 mVpp (20 Hz - 20 MHz) |
| Protection | OVP, OTP |
| Display | 0.5" LED (3½ digits) |
| Dimensions | 255 x 145 x 265 mm |
| Weight | 6 kg |
Accessories
The GW Instek SPD-3606 includes:
- 1x Power cord
- 2x GTL-104A
- 1x GTL-105A
- 1x GTL201A
- 1x GTL-203A
- 2x GTL204A
- Declaration of traceable calibration
Pros and cons
- Isolated outputs
- Dual range
Downloads
| SPD-3606 data sheet |  (226.95 KB) | Download |
| SPD-3606 user manual | (1.71 MB) | Download |
| DTC sample | (126.04 KB) | Download |
