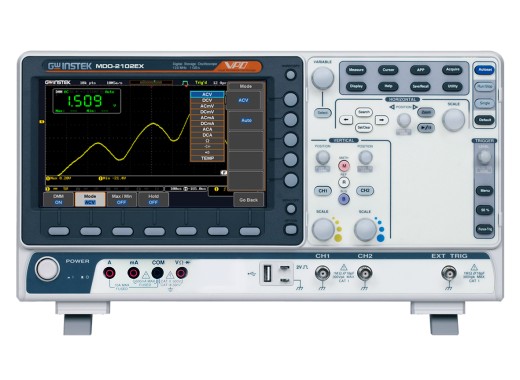

The GW Instek MDO-2102EX is a 2-channel oscilloscope and the 100MHz version in the MDO-2000EX series of GW Instek. The series is MD (Mixed Domain) oscilloscopes (1) with a built-in spectrum analyser (2) and a dual-channel 25MHz arbitrary function generator (3). Furthermore, these oscilloscopes have a 5000-count multimeter (4) and a double 5V / 1A power supply (5) for IOT applications.

Spectrum analyser

The built-in spectrum analyser of the MDO-2000EX runs from DC up to 500 MHz. This offers the possibility to analyze the frequency domain of sound frequencies and vibrations. The horizontal axis shows the frequencies and the vertical axis shows the dB level. The built-in spectrum analyser is super fast, and you can set it as you are used to from a full spectrum analyser.

Function Generator

With the 25 MHz function generator you can create all the desired waveforms yourself.

Frequency display analysis

GW Instek offers you free frequency response analysis software, giving your MDO-2000E oscilloscope the ability to display a frequency response (Bode plot) of a circuit. The frequency range of this plot is 20 Hz to 25 MHz and per decade up to 90 test points can be selected. This software can be downloaded at the website of GW Instek.

.

MDO-2102AG

If you do not need a DMM or power supply in your scope, the MDO-2102AG models are an alternative.

Video

View a demonstration of the MDO-2000EX series

.

Models

The oscilloscopes of the MDO-2000EX series only differ in bandwidth and channels.

ModelBandwidthChannelsPrice
MDO-2072EX 70 MHz 2 945 Regular Price: €1,050.00 Now: €945.00 Excl. VAT
MDO-2074EX 70 MHz 4 1381.5 Regular Price: €1,535.00 Now: €1,381.50 Excl. VAT
MDO-2102EX 100 MHz 2 1170 Regular Price: €1,300.00 Now: €1,170.00 Excl. VAT
MDO-2104EX 100 MHz 4 1606.5 Regular Price: €1,785.00 Now: €1,606.50 Excl. VAT
MDO-2202EX 200 MHz 2 1516.5 Regular Price: €1,685.00 Now: €1,516.50 Excl. VAT
MDO-2204EX 200 MHz 4 1755 Regular Price: €1,950.00 Now: €1,755.00 Excl. VAT

Specifications

Sample rate 1 GSa/s per channel
Memory depth 10 Mpts
Waveform capture rate A maximum of 120 000 wfms/s
Trigger types Edge, Pulse Width, Video, Pulse Runt, Rise & Fall (slope), Alternate,time out, Event-Delay, Time-Delay, Bus
Waveform math Add, subtract, multiply, divide, min/max, root, square, abs, inverse, derived, integral, LPF
Vertical scale 1 mV/div - 10 V/div
Horizontal scale 1 ns/div ~ 100 s/div
Spectrum analyser specifications
Frequency rangeDC - 500 MHz
Span1 kHz - 500 MHz
Noise levelminimal < -90 dBM
FFT windowsHanning, Rectangular, Hamming, Blackman
Function generator specifications
Channels2
Sample rate200 MSa/s
Frequencyup to 25 MHz
WaveformsSine, Square, Pulse, Ramp, DC, Noise, Sinc, Gaussian, Lorentz, Exponential Rise, Exponential Fall, Haversine, Cardiac
Display 8" TFT LCD WVGA color display (800 x 480 pixels)
Connectivity USB 2.0 host and device, Ethernet (RJ45) and Go-NoGo BNC
Dimensions 384 x 208 x 127.3 mm
Weight 3 kg

Accessories

The GW Instek MDO-2000E series of oscilloscopes are supplied with:

  • Power cord
  • Manual
  • CD with user and programming instructions
  • Certificate of calibration
  • Passive probe (1 per channel)
  • 2x BNC to BNC cable
  • Crocodile clips GTL-105A
  • Banana plugs GTL-207
