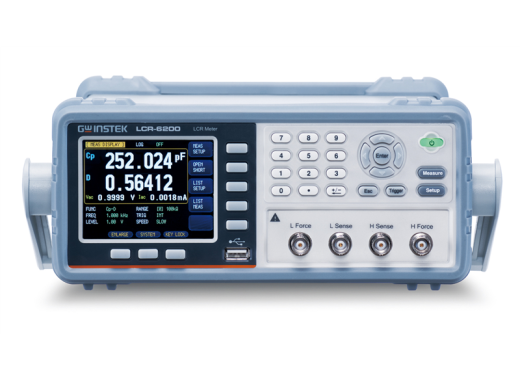

GW Instek LCR-6200 precision LCR meter
Details
The GW Instek LCR-6200 is a high-precision LCR meter which is suitable for a lab environment and has a 3.5” colour LCD. The LCR-6200 offers an accuracy of 0.05% to 0.1%, which allows for precise measurements of LCR circuits.
This meter is capable of showing four different values at once due to the quadruple display. Furthermore, it is able to perform 16 major and secondary parameter measurement combinations and also has two additional monitoring parameters.
The LCR-6200 meter is also capable of saving up to ten test setups. In addition, the meter has a USB connection, which offers the possibility of saving measurement data on a USB stick. Moreover, it is equipped with a pass/fail judgment to check whether products or components are fulfilling the specifications
Specifications
| Measurement range | 10Hz ~ 200kHz(±0.01%) |
| Precision | SLOW/MED: 0.05% , FAST: 0.1% |
| Test signal | 10.00 mV - 2.00 Vrms (±10%)100.00 µA ~ 20 mArms (LCR-821) |
| Memory size | 10 test setups, 10.000 measurement results |
| Display | 3.5" RGB-LCD (320x240) |
| Connectivity | RS-232, Handler, USB host |
| Dimensions | 265 x 107 x 312 mm |
| Weight | 3 kg |
LCR-6000 series
This table below shows the differences between the different LCR meters in the LCR-6000 series.
| Model | LCR-6002 | LCR-6020 | LCR-6100 | LCR-6200 | LCR-6300 |
| Measurement range | 10Hz ~ 2kHz | 10Hz ~ 20kHz | 10Hz ~ 100kHz | 10Hz ~ 200kHz | 10Hz ~ 300kHz |
| Price (excl. VAT) |
Accessories
The LCR-6200 includes:
- Safety sheet
- Power cord
- LCR-06Ax (Test cord)
- Declaration of traceable calibration
Downloads
| GW Instek LCR-6000 Series Datasheet |  (5.11 MB) | Download |
| GW-Instek LCR-6000 user manual | (2.91 MB) | Download |
| DTC sample | (126.04 KB) | Download |
