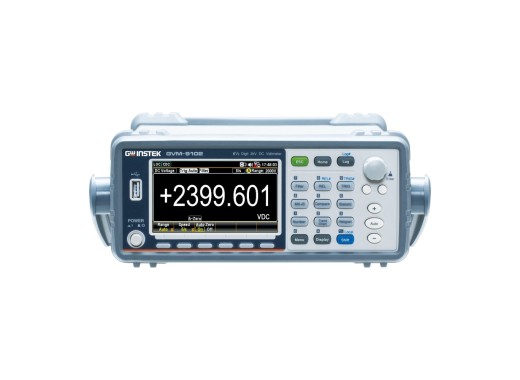

GW Instek GVM-9102 voltage meter
Details
The GW Instek GVM-9102 is a 6½ digit digital voltmeter with a high DC voltage accuracy. The meter offers a high-precision DC voltage measurement up to 2400V with 0.01% basic accuracy without the need for any attenuators. Though the device is only able to measure volts, the high accuracy makes this an ideal device for measuring voltages. Furthermore, this meter also includes a wide range of math functions to simplify the analysis of data and has several statistical functions, such as min/max/average.
In addition to the standard numerical display mode, the GVM-9102 also offers a variety of graphical functions that can be displayed on its 4.3" TFT display, including a bar meter, histogram and a trend graph. As a result, measurement results can be presented as numbers, but also as visual plots that improve clarity and interpretation.
The GVM-9102 is equipped with a USB device host/device, RS-232C, LAN and digital I/O. Together with the supplied PC software, the meter can be configured from a computer and log or monitor measured data in real time.
Specifications
| Display resolution | 2,000,000 counts, 6½ digit |
| Max. DC voltage | 2400 V |
| Accuracy | 0.01 % |
| Sample rate | 10 kpts/s |
| Internal memory | 100 kpts |
| Mathematical functions | dB, dBm, Compare, MX+B, Percent, 1/X |
| Statistical functions | Min, Max, Average, P-P, STDEV |
| Connectivity | USB host/device, RS-232C, LAN, digital I/O |
| Display | 4.3" TFT Graphic LCD (480 x 272) |
| Dimensions | 267 × 107 × 302 mm |
| Weight | 3.3 kg |
Accessories
The GVM-9102 is delivered with:- 1x Power cord
- 1x GTL-246 USB cable
- 1x GHT-116R test lead
- 1x GHT-116B test lead
Pros and cons
- Measure up to 2400V
- High accuracy
- Only measure DC voltage
Downloads
| GW Instek GVM-9102 manual |  (5.87 MB) | Download |
| GW Instek GVM-9102 datasheet | (1.08 MB) | Download |
