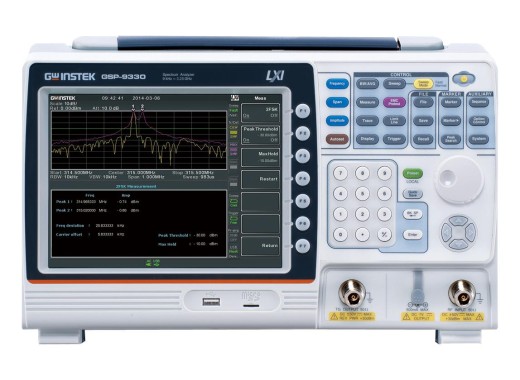

GW Instek GSP-9330 spectrum analyser
Details
The GW Instek GSP-9330 is a light, compact 3.25 GHz spectrum analyser. The bandwidth range of 9 kHz to 3.25 GHz makes the GSP-9330 suitable for use in various applications such as EMC testing and measuring on Wi-Fi or GSM networks. Furthermore, this analyser has a built-in preamplifier, allowing noise level as low as -149 dBm/Hz. With a very fast sweep that is performed in only 204 µs can be very capable of measuring changing signals such as Bluetooth frequency hopping or interference.
With the increasing use of FSK modulation, it is useful to have an analyser that can demodulate it. The GSP-9330 offers support for this. ASK, FSK and 2FSK signals can be decoded. In addition to demodulation, the analyser can also perform Pass/Fail assessment to determine if the modulation meets specifications. This analyser can also handle analogous modulations such as AM/FM. Here, too, pass/fail will be judged. Furthermore, the GSP-9330 also has a built-in 'EMC pretest solution' that allows easy EMC pre-compliance testing. can be carried out. This EMC solution includes EMI filters, Quasi-Peak/Average detection modes and a 20 dB low noise amplifier.
With the supplied software, the measured data can easily be logged on a computer. In addition, both via a computer, via an Android device, via an app, the spectrum analyser can be remotely controlled. The 9330 offers support for storage on a USB stick or a micro-SD card, with the built-in reader on the front.
Specifications
| Frequency range | 9 kHz - 3.25 GHz |
| Resolution | 1 Hz |
| Maximum input power | < 33 dBm |
| Defaulted Noise | 18 dBm (100 kHz - 1 MHz) 21 dBm (1 MHz - 10 MHz) 30 dBm (10 MHz - 3.25 GHz) |
| Noise level | to -149 dBm/Hz |
| Scale display | Linear, logarithmic |
| Memory | 16 MB |
| Connectivity | USB (Host and Device), Micro-SD slot (up to 32GB), IF, LAN, RS232, DVI-I video, 3.5mm stereo |
| Screen | 8.4" LCD |
| Dimensions | 210 x 350 x 100 mm |
| Weight | 4.5 kg |
Software
You can download the driver and software here.
Accessories
The GW Inlet GSP-9330 comes with:
- Quick start guide
- User manual and software on CD
- Spectrum shot EMI software
- Certificate of calibration
- Power cord
Options
There are several options available with this spectrum analyser. You can click on the options to go to the corresponding page, where you can also add the options to your shopping cart.- Battery package, so that the spectrum analyser can be used mobile
- GPIB connectivity, for extended communication capabilities
Downloads
| GSP-9330 Manual |  (7.8 MB) | Download |
| DTC sample | (126.04 KB) | Download |
