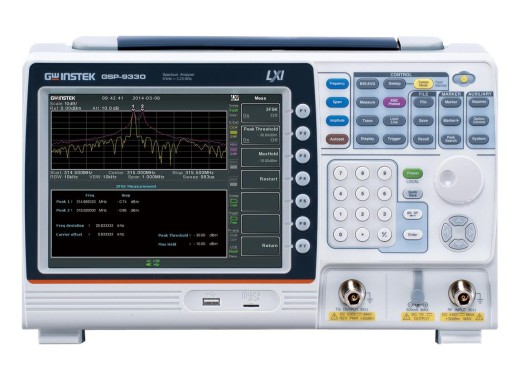

GW Instek GSP-9330 spectrum analyser with tracking generator

6120 €6,120.00 Excl. VAT

Loading stock info

Product number: ELE002971

Be the first to review this product

Lowest price guaranteed

Details

The GW Instek GSP-9330 is a lightweight, compact spectrum analyser with a frequency range of 9 kHz to 3.25 GHz, making it ideal for various applications, including EMC testing and measurements in Wi-Fi or GSM networks. This analyser features a built-in preamplifier, enhancing its sensitivity with a noise level as low as -149 dBm/Hz. Its rapid sweep capability, completing in just 204 µs, efficiently measures dynamic signals like Bluetooth frequency hopping or interference.
The GSP-9330 supports the demodulation of ASK, FSK, and 2FSK signals and includes Pass/Fail assessments to verify if the modulation adheres to specifications. The analyser is also equipped to handle analog modulations such as AM/FM, offering Pass/Fail evaluation for these as well. Additionally, the GSP-9330 features a built-in 'EMC pretest solution', simplifying EMC pre-compliance testing. This solution includes EMI filters, Quasi-Peak/Average detection modes, and a 20 dB low-noise amplifier.
With the supplied software, the measured data can easily be logged on a computer. In addition, the spectrum analyser can be remotely controlled via a computer or an Android device through a dedicated app. The GSP-9330 supports data storage on USB drives or micro-SD cards, facilitated by the built-in reader on the front panel.

This GSP-9330+ tracking model is equipped with a tracking generator, which is particularly useful for direct testing of components like filters. The generator emits a signal at a specific frequency, which is simultaneously measured by the spectrum analyser. This feature allows for a straightforward analysis of circuit responses across various frequencies.

Specifications

Frequency range	9 kHz - 3.25 GHz
Resolution	1 Hz
Maximum input power	< 33 dBm
Default noise	18 dBm (100 kHz - 1 MHz) 21 dBm (1 MHz - 10 MHz) 30 dBm (10 MHz - 3.25 GHz)
Noise level	to -149 dBm/Hz
Scale display	Linear, logarithmic
Memory	16 MB
Connectivity	USB (Host and Device), Micro-SD slot (up to 32GB), IF, LAN, RS232, DVI-I video, 3.5mm stereo
Display	8.4" LCD
Dimensions	210 x 350 x 100 mm
Weight	4.5 kg

Specifications Tracking Generator

Bandwidth	100 kHz - 3.25 GHz
Output power	-50 - 0 dBm
Impedance	50 Ω

Software

You can download the driver and software here.

Accessories

The GW Instek GSP-9330 comes with:

Spectrum shot EMI software
Certificate of calibration
Power cord

Options

There are several options available for this spectrum analyser. You can click on the options to go to the corresponding page, where you can also add the options to your shopping cart.
