2995.87 €2,995.87 Excl. VAT
Shipped under 4 days

Be the first to review this product

Details

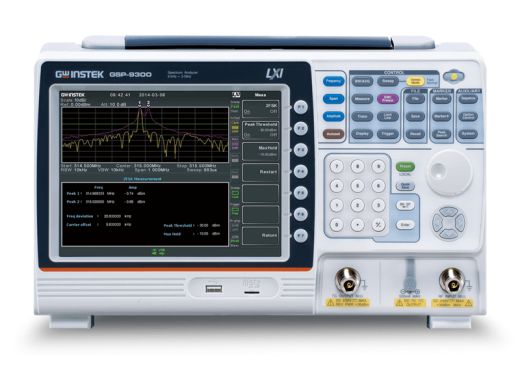

The GSP-9300B from GW Instek is a light, compact 3 GHz spectrum analyser. The range of 9 kHz to 3 GHz makes the GSP-9300 suitable for use in various applications such as measuring on Wi-Fi or GSM networks. Furthermore, this analyser has a built-in preamplifier, so that the noise level is up to -142 dBm/Hz.

With a sweep executed in 307 µs it is possible to measure changing signals such as bluetooth frequency hopping or interference in a very capable way.

With the included software the measured data can easily be logged on a computer. In addition, the spectrum analyser can be remotely controlled via computer or Android device via an app. The 9300B supports storage on a USB stick, or on a micro-SD card, with the built-in reader on the front.

Optionally it is possible to purchase the GSP-9300B with built-in tracking generator. The usefulness of this is that the response of an e.g. filter can be tested directly. The generator generates a signal on a frequency. This same frequency is measured at the same time by the spectrum analyser. This makes it easy to form an image of the reaction of a circuit at different frequencies.

Models

The difference between the 2 models is only the presence of a tracking generator.

GSP-9300B, TGyes
ModelGSP-9300B
Tracking generator (TG)
no
Price

Specifications

Bandwidth 9 kHz - 3 GHz
Resolution 1 Hz
Maximum input power < 33 dBm
Defaulted Noise 18 dBm (100 kHz - 1 MHz)
21 dBm (1 MHz - 10 MHz)
30 dBm (10 MHz - 3 GHz)
Noise level To -122 dBm/Hz (preamplifier off), To -142 dBm/Hz (preamplifier on)
Scale display Linear, logarithmic
Memory 16 MB
Connectivity USB (Host and Device), Micro-SD slot (up to 32GB), LAN, RS232, DVI-I video
Screen 8.4" LCD
Dimensions 210 x 350 x 100 mm
Weight 4.5 kg

Software

You can download the driver here.

Accessories

The GW Inlet GSP-9300B comes with:

.
  • Quick start guide
  • User manual and software on CD
  • Certificate of calibration
  • Power cord

Options

There are several options available with these spectrum analysers. You can click on the options to go to the corresponding page, where you can also add the options to your shopping cart.

Downloads
