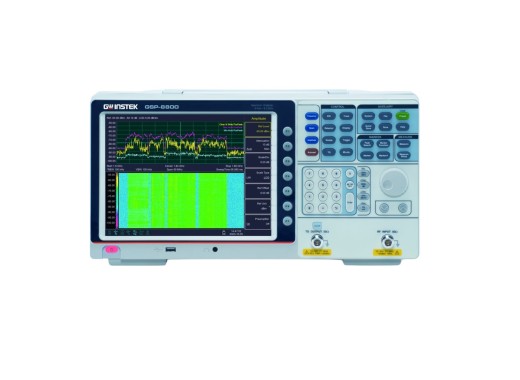

GW Instek GSP-8800TG spectrum analyser
Details
The GW Instek GSP-8800TG is an 8GHz spectrum analyser that has a large XGA 10.4" inch display and features a tracking generator. For communication, GSP-8800TG provides two interfaces: USB and LAN. Through the USB Host, users can quickly retrieve the files stored after measurements, while USB Device and LAN interface allow users to control the instrument through dedicated PC software, or use the corresponding command set to design the required program. The version of this spectrum analyser without a tracking generator can be found here.
Specifications
| Bandwidth | 9 kHz - 8 GHz |
| Resolution Bandwidth | 1 Hz - 1 MHz |
| Video Bandwidth | 10 Hz - 3 MHz |
| Noise level | Up to -140 dBm/Hz, with pre-amplifier up to -160 dBm/Hz |
| Phase noise | –104 dBc / Hz | .
| Tracking generator | Yes |
| Interfaces | USB, LAN |
| Display |
10.4" XGA 1024 x 768 |
| Weight | 5.0 kg |
| Dimensions | 421 x 221 x 115 mm |
Downloads
| GW Instek GSP-8000 series - Datasheet |  (2.77 MB) | Download |
| GW Instek GSP-8000 series - User manual | (1.64 MB) | Download |
| GW Instek GSP-8000 series - Programming manual | (2.22 MB) | Download |
| DTC sample | (126.04 KB) | Download |
