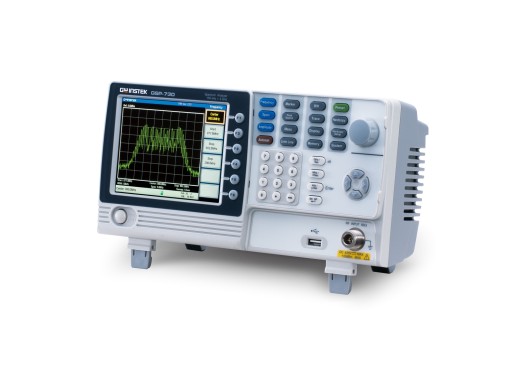

GW Instek GSP-730 spectrum analyser
Details
The GW Instek GSP-730 is an entry-level spectrum analyser designed with a focus on affordability and high quality. It is tailored for educational institutions with budget constraints, offering a modern and high-quality solution for spectrum analysis. This spectrum analyser is equipped with features such as a split-window function, limit line function, and remote control software, providing users with versatile and convenient operation. With a frequency range spanning from 150 kHz to 3 GHz, it's ideal for educational applications. The teacher can use a PC to present teaching material with PowerPoint slides to control GSP-730 for experiments, and display spectrum readings on the PC screen. It also allows easy transfer of teaching materials into an electronic teaching system. The spectrum analyser features USB device/host and RS-232C interfaces
Specifications
| Bandwidth | 150 kHz - 3 GHz |
| RBW | 30 kHz |
| DANL | ≤ -100 dBm |
| Amplitude accuracy | ≤ 2 dB |
| Phase noise | < - 85dB / Hz |
| Tracking generator | No |
| Interfaces | USB host/device, RS-232C |
| Display | 640x480 RGB colour LCD |
| Dimensions | 296 x 153 x 105 mm |
| Weight | Approx. 2.2 kg |
Accessories
The GSP-730 includes:
- User manual CD
- Start manual
- Power cord
- Declaration of traceable calibration
Pros and cons
- Easy PowerPoint integration
- No tracking generator
Downloads
| GSP-730 datasheet |  (420.77 KB) | Download |
| DTC sample | (126.04 KB) | Download |
