Product number: ELE005904

Be the first to review this product

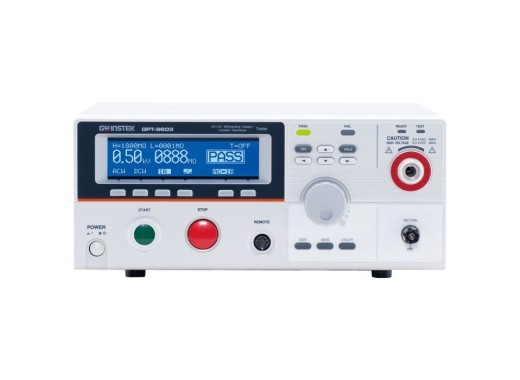

The GPT-9600 series Hi-pot testers from GW Instek are high quality Hi-pot testers at an attractive price. The GPT-9612 is able to perform AC withstanding test and IR testing. Many features and a maximum test voltage of 5 kV makes these testers a good choice.

The testers are designed for ease of use, the high resolution dot LCD display clearly shows which settings have been chosen, and whether the test object meets the set requirements. The devices meet the test requirements of IEC, EN, UL, CSA and CE.

When working with high voltages such as 5 kV, it is important that no safety problems occur. The testers are designed to minimize the change of this happening, so when the test is completed or a dangerous situation occurs they switch off the voltage.


Hi-pot (DC/AC withstanding)
Aim: To prevent users of a product from receiving an electrical shock, for example due to a failure of the electrical insulation.
Method: By measuring the amount of current leaking between the high voltage part and the "safe" low voltage part while using the product in high-voltage mode, one can measure whether dangerous situations may occur.

Isolation test
Aim: To test the quality of the insulation
Method: Alike to the Hi-pot test, measure how much current is leaking from the high-voltage part to the low-voltage part of the circuit.


The difference between the models in the GPT-9600 series is explained in the table below.

    993.18 €993.18 Excl. VAT
  892.8 €892.80 Excl. VAT
892.8 €892.80 Excl. VAT
1088.1 €1,088.10 Excl. VAT


Output voltage range 0,100 kV ~ 5,000 kV
Output voltage resolution 10 V
Max. power 100 VA
Max. current 20 mA (0.5kV - 5kV)
5 mA (0.1kV - 0.5kV)
Output-voltage waveform Sinus, 50/60 Hz (Adjustable)
Display 240 x 48 dot matrix LED back light LCD
Interfaces RS232
Weight 9 kg
Dimensions 330 x 148 x 385 mm (LxWxH)


All GPT-9600 Hi-Pot testers are supplied including:

  • Power cord
  • Interlock key
  • Remote terminal cable
  • Test lead

Pros and cons

  • Cheaper then other Hi-pot testers from GW
  • AC withstanding test and IR testing


GPT-9600 Specs
pdf (756.47 KB)
