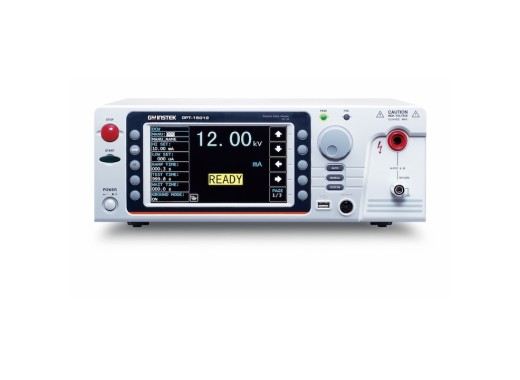

GW Instek GPT-15012 Hi-pot tester
Details
The new flagship GW Instek GPT-15012 Hi-pot tester complies with the IEC 61010-2-034 standard. It is able to perform DC withstanding and insulation resistance tests. This Hi-pot tester is an excellent choice because it offers a vast array of features such as RMS current measurement, zero crossing turn-on operation, sweep function for DUT characteristics analysis and a statistics/analysis function This Hi-pot can test at high voltages up to 12 kV for DC withstanding tests and 5 kV for insulation resistance tests. The GPT-15012 has a test capacity of 1000 VA and a capacitive load testing capability of up to 47 μF whilst maintaining a high accuracy/resolution and unmatched safety.
For a Hi-pot with similar specifications but a lower maximum rated load you can look at earlier GPT-15000 series products. For a Hi-pot tester with fewer capabilities such as no USB storage, no GC function, a smaller screen, and no data memory, you can look at the GPT-9900 or GPT-9800 series.
Specifications
| DC voltage range | 0.050 kV - 12 kV |
| DC voltage resolution | 1 V |
| DC maximum rated load | 120 W (12 kV / 10 mA) |
| DC maximum rated current | 10 mA (0.5 kV < V ≤ 12 kV) 2mA (0.05 kV ≤ V ≤ 0.5 kV) |
| Current measurement range | 1 μA ~ 10.00 mA |
| Memory | 100 blocks |
| Connectivity | USB host/device, RS-232C, signal I/O, remote control |
| Display | 7” color LCD |
| Dimensions | 380 x 148 x 492 mm |
| Weight | 9.8 kg |
Accessories
The GPT-15012 comes with:
- CTC (Calibration Traceable Certificate)
- 1 x Power cord
- 1 x Interlock key
- 1 x Remote terminal cable GHT-119
- 1 x Test lead GHT-120
- Declaration of traceable calibration
Pros and cons
- USB storage
- Sweep function
- 1000 VA
- No AC withstanding
Downloads
| GPT-15012 Specifications |  (362.18 KB) | Download |
| GPT-15012 Datasheet | (881.38 KB) | Download |
| GRA-440 rack mount assembly manual | (570.2 KB) | Download |
| GPT-15012 Product announcement | (979.22 KB) | Download |
| DTC sample | (126.04 KB) | Download |
