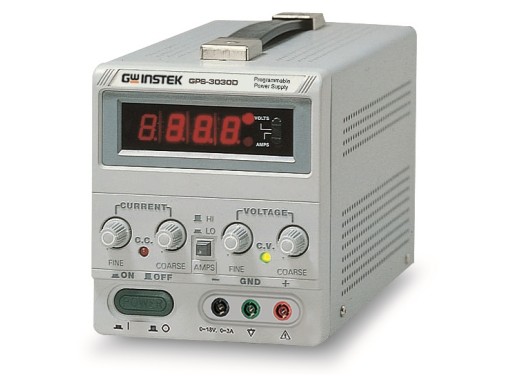

GW Instek GPS-3030D power supply
Details
The GW Instek GPS-3030D is a compact power supply from the GPS single-channel power supply series. The channel has a low ripple and output noise that ensures accurate voltage/current levels. For safety, the GPS-3030D has overload, and reverse polarity protection. This ensures that the device is kept safe from unexpected events. It also has automatic internal switching to recognize a continuous or dynamic load. Lastly, the GW Instek power supply can also be programmed via the backside of the supply. For more details, you can look at the manual below.
For an almost duplicate power supply from GW Instek but with two seperate digital displays for current and voltage, you can look at the 3030DD.Specifications
| Voltage | 0 - 30 V |
| Current | 0 - 3 A |
| Power | 90 W |
| Ripple voltage | ≤ 0.5mVrms (5Hz - 1MHz) |
| Ripple current | ≤ 3mArms |
| Display | 3 1∕2 digital 0.5" LED display |
| Dimensions | 128 x 145 x 285 mm |
| Weight | 5 kg |
Accessories
The GW Instek GPS-3030D power supply comes with:
- 1 x Power cord
- 1 x GTL-105A alligator to banana test lead
- 1 x GTL-203A alligator to banana test lead, european terminal
Pros and cons
- External programmability
- Automatic internal switching for continuous or dynamic load
Downloads
| GPS single power supply user manual |
 (1.15 MB) |
Download |
| GPS single power supply specifications |
(228.89 KB) |
Download |
| GW Instek GPS series datasheet |
(228.89 KB) |
Download |
