GW Instek GPP-1205 power supply + load
Details

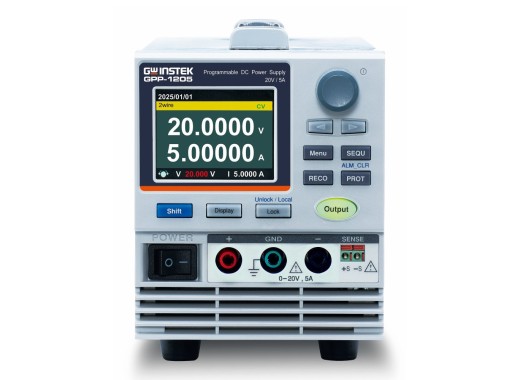

The GW Instek GPP-1205 is a high-accuracy single-channel programmable linear DC power supply designed for production testing and component evaluation. It delivers up to 20V, 5A and 100W, with high resolution for applications where small changes need to be measured accurately. The output can also operate as an electronic load, making the GPP-1205 particularly useful for battery charging and discharging tests.
The GPP-1205 has adjustable voltage and current slew rates that provide greater control over changing loads. Sequence programming, data logging and selectable CV or CC operation support automated and repeatable testing. The device also includes USB, LAN, and Control I/O interfaces, and also supports both series and parallel connections of up to 4 units for high-power operation.
Model overview
| Model | GPP-1205 | GPP-1323 | GPP-1205-GPIB | GPP-1323-GPIB |
|---|---|---|---|---|
| Total power | 100 W | 96 W | 100 W | 96 W |
| Voltage range | 0 - 20 V | 0 - 32 V | 0 - 20 V | 0 - 32 V |
| Current range | 0 - 5 A | 0 - 3 A | 0 - 5 A | 0 - 3 A |
| GPIB | No |
No |
Yes |
Yes |
| Price |
Specifications
| Outputs | 1 |
| Output switch | Yes |
| Resolution | 0.1 mV/ 0.1 µA |
| Ripple | 0.8 mVrms / ≤2 mArms |
| Protection | OVP, OCP, OTP, reverse-polarity protection |
| Display | 2.4" TFT LCD |
| Interfaces | USB host/device, LAN, Control I/O |
| Dimensions | 107 x 124 x 313 mm |
| Weight | 5.5 kg |
Accessories
The GW Instek GPP-1205 series comes with:
- 1x Power cable
- 1x GTL-204A test lead
Pros and cons
- High-resolution
- 100W single-channel electronic load included
- LAN, RS232, and USB interfaces
- Single channel only
- Low power
