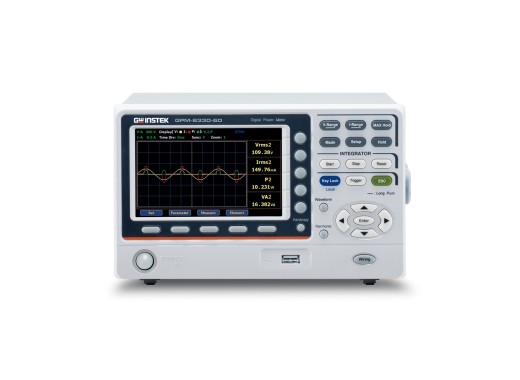

GW Instek GPM-8330-60 digital power meter
Details
The GW Instek GPM-8330-60 is a highly accurate 3-channel programmable digital power meter, suitable for 3-phase simultaneous measurements on AC and DC power supplies. It offers a test bandwidth of 0.1 Hz to 100 kHz + DC and features a 16-bit A/D converter with a 300 kHz sampling rate. This model has a maximum input current of 60 A.
It includes a wiring selection button (1P3W, 3P3W, 3P4W, 3V3A) and an auto-ranging function for Integration mode. Measurements can be retrieved and stored through RS-232C, USB (device/host) and LAN connectors. The device also displays waveforms of V (voltage), I (current) and P (wattage). Screenshots of the waveform display can be captured through the USB host.
This product complies with IEC 61000-4-7, making it suitable for conducting (inter)harmonic measurements (50/60 Hz) for EMC testing.
Model overview
| Model | GPM-8320 | GPM-8320-60 | GPM-8330 | GPM-8330-60 |
|---|---|---|---|---|
| Channels | 2 | 2 | 3 | 3 |
| Maximum current | 20 A | 60 A | 20 A | 60 A |
| Price |
Specifications
| Electrical specifications | |||||||||||||
|
|||||||||||||
| Interfaces | RS-232C, USB (device/host), LAN | ||||||||||||
| Display | 5" TFT | ||||||||||||
| Dimensions | 220 × 132 × 402.5 mm | ||||||||||||
| Weight | 3.85 kg | ||||||||||||
Accessories
The GPM-8330-60 comes by default with:
- Power cord
- 3× Test lead (GTL-209)
- 3× Test lead (GTL-212)
- Declaration of traceable calibration
Pros and cons
- Highly accurate
- Displays V/I/P waveforms simultaneously
- No integrated GPIB
Downloads
| GPM-8320/8330-60 datasheet |  (788.54 KB) | Download |
| GPM-8320/8330-60 user manual | (6.89 MB) | Download |
