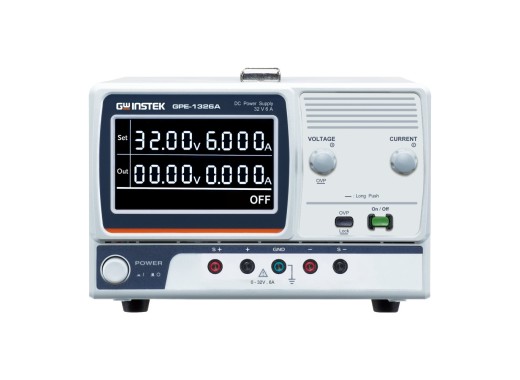

GW Instek GPE-1326A power supply
Details
The GW Instek GPE-1326A is an affordable and compact single-output DC power supply part of the GPE-X323A series. The power supply can output up to 192W, 32V and 6A. Additionally, the device is well-built with high reliability and low noise. Furthermore, the power supply can be controlled via an analog remote control I/O connector. The power supplies are also equipped with a key lock function that protects the DUT by preventing unauthorised or accidental changes to the voltage/current parameters.
For the multi-channel power supplies, the GPE series offers serial and parallel connection functions, in addition to the independent output channels. The OVP protection can be individually set for each channel. Finally, the device comes with a 4.3" monochrome LCD.
Model overview
| Model | GPE-1326A | GPE-2323A | GPE-3323A | GPE-4323A |
|---|---|---|---|---|
| Total power | 192 W | 192 W | 217 W | 212 W |
| Outputs | 1 | 2 | 3 | 4 |
| Voltage range | CH1: 0 - 32 V | CH1: 0 - 32 V CH2: 0 - 32 V |
CH1: 0 - 32 V CH2: 0 - 32 V CH3: 5 V |
CH1: 0 - 32 V CH2: 0 - 32 V CH3: 0 - 5 V CH4: 0 - 15 V |
| Current range | CH1: 0 - 6 A | CH1: 0 - 3 A CH2: 0 - 3 A |
CH1: 0 - 3 A CH2: 0 - 3 A CH3: 5 A |
CH1: 0 - 3 A CH2: 0 - 3 A CH3: 0 - 1 A CH4: 0 - 1 A |
| Price |
Specifications
| Resolution | 10 mV or 100 mV 2 mA or 10 mA |
| Ripple | ≤ 1 mVrms / 3 mArms |
| Protection | OPP, OCP, OVP |
| Interfaces | Remote I/O, 10 pin terminal |
| Display | 4.3" monochrome LCD |
| Dimensions | 210 x 155 x 306 mm |
| Weight | 7 kg |
Accessories
- Power cord
- GTL-203A test lead
- GTL-204A test lead
- Declaration of traceable calibration
Downloads
| GPE-X323A series datasheet |  (2.3 MB) | Download |
| GPE-X323A series user manual | (2.37 MB) | Download |
