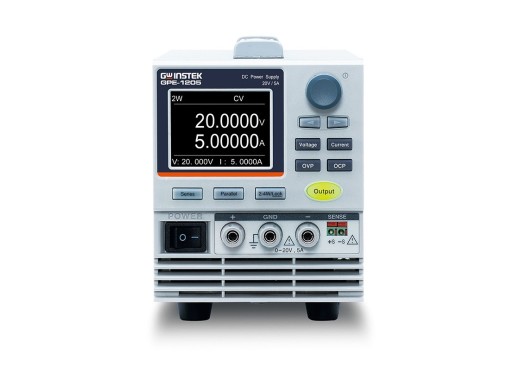

GW Instek GPE-1205 power supply
Details
The GW Instek GPE-1205 is a compact power supply from the GPE single-channel power supply series. The channel has a low ripple and output noise that ensures accurate voltage/current levels. For safety, the GPE-1205 has overload, and reverse polarity protection this ensures that the device is kept safe from unexpected events. The power supply also has automatic internal switching to recognize a continuous or dynamic load. Finally, the GW Instek power supply can also be programmed via the backside of the supply. For more details, you can look at the manual below.
Model overview
| Model | GPE-1205 | GPE-1323 |
|---|---|---|
| Power | 100 W | 100 W |
| Voltage range | 0 - 20 V | 0 - 32 V |
| Current range | 0 - 5 A | 0 - 3 A |
| Price |
Specifications
| Outputs | 1 |
| Output switch | Yes |
| Setting resolution | 1 mV / 0.1 mA |
| Reading resolution | 0.1 mV / 0.01 mA |
| Ripple voltage | ≤ 0.5 mVrms (5Hz - 1MHz) |
| Ripple current | ≤ 2 mArms |
| Display | 2.4" color TFT LCD |
| Protection | OVP, OCP, OTP, RPP |
| Interfaces | RS232 |
| Dimensions | 107 x 124 x 313 mm |
| Weight | 5.2 kg |
Accessories
The GW Instek GPE-1205 power supply comes with:
- 1 x Power cord
- 1 x GTL-204A alligator clip to banana test lead
- Declaration of traceable calibration
Downloads
| GW instek GPE series manual |  (1.06 MB) | Download |
| GW instek GPE series datasheet | (2.09 MB) | Download |
