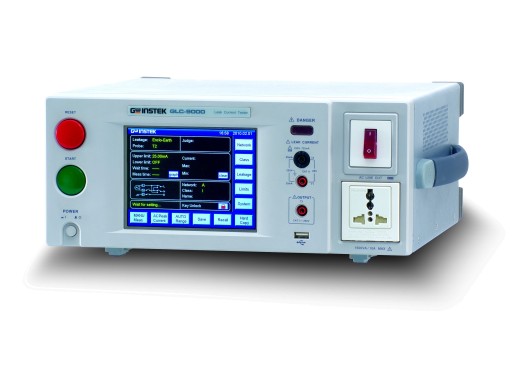

GW Instek GLC-9000 leakage current tester
Details
The GW Instek GLC-9000 is a leakage current measuring device that is used to perform leakage current tests (or so-called touch current tests) on electrical and electronic devices (IEC 60990).
The GLC-9000 works with 9 different measuring networks (also called Measuring Device (MD)) to enable the simulation of the human body while the Equipment Under Testing (EUT) undergoes a leakage current test according to specific standards or regulations, such as IEC, UL, JIS etc.
The measuring device can measure 8 different types of leakage currents. In addition, 50 preset test conditions comply with IEC 60990 and other standards. There are also 30 memory slots to store personal settings.
Specifications
| DC | Range | 50µA / 500µA / 5mA / 25mA |
| Resolution | 0.01µA / 0.1µA / 1µA / 10µA | |
| Accuracy | ±1.0% fs /±(0.2% rdg + 3 dgt) | |
| AC/AC+DC | Range | 50µA / 500µA / 5mA / 25mA |
| Resolution | 0.01µA / 0.1µA / 1µA / 10µA | |
| Accuracy | 10Hz - 100kHz: ±2.0% fs / ±(2.0% rdg + 6 dgt)
100kHz - 1MHz: ±2.0% fs / ±(2.0% rdg + 10 dgt) |
|
| AC peak | Range | 500µA / 1mA / 10mA / 75mA |
| Resolution | 0.1µA / 1.0µA / 10µA / 100µA | |
| Accuracy | 20Hz - 1kHz: ±4.0% fs/ ±2.5% fs/ ±(2.0% rdg + 6 dgt)
1kHz - 10kHz: ±5.0% fs/ ±5.0% fs/ ±(5.0% rdg + 10 dgt) |
|
| Meter modes | AC/DC/AC+DC | 10.0V - 300.0V |
| AC peak | 15.0V - 430.0V | |
| SELV functie | Available | |
| EUT (V/I check) | Voltage | 85V - 300V |
| Current | 0.5A - 10A | |
| Memory | 30 slots | |
| Interface | USB Host, USB Device, RS-232C, GPIB, EXT, I/O | |
| Display | 320 x 240 color TFT LCD touchscreen | |
| Weight | 5.0kg | |
| Dimensions | 330 x 150 x 350mm | |
Accessories
The GW Instek GLC-9000 is supplied including:
- Power cord
- Test probes (2x)
- Alligator clips (4x)
- Foil probe
- User manual
- Declaration of traceable calibration
