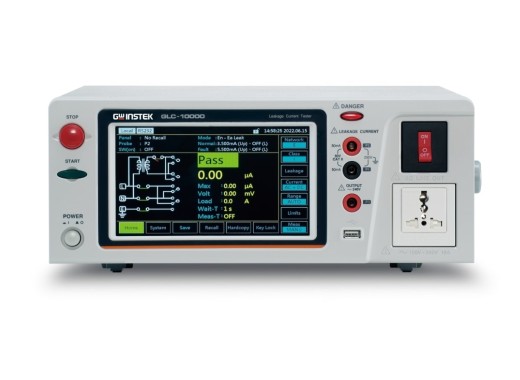

The GW Instek GLC-10000 is a leakage current measuring device that is used to perform leakage current tests on electrical and electronic (medical) devices complying with IEC 60601-1 (2020 3.2rd).
The GLC-10000 works with 12 simulated human impendance networks to enable the simulation of the human body while the Equipment Under Testing (EUT) undergoes a leakage current test according to specific standards or regulations, such as IEC, UL, EN, etc.
The measuring device has the possibility to measure 20 different types of leakage currents. There are 30 memory slots to store personal settings. It is equipped with a 7-inch TFT LCD touch screen for convenient operation and information observation, allowing for settings information and test results to be displayed simultaneously. In addition, 1000 sets of measurement results can be stored for future analysis.
DC | Range | 50µA / 500µA / 5.000mA / 50mA |
Resolution | 0.01µA / 0.1µA / 1µA / 10µA | |
Accuracy | ±2.0% fs /±(0.2% rdg + 6 dgt) | |
AC/AC+DC | Range | 50µA / 500µA / 5.000mA / 50mA |
Resolution | 0.01µA / 0.1µA / 1µA / 10µA | |
Accuracy | 0.1Hz - 15Hz: ±4.0% fs / ±(2.0% rdg + 10 dgt)
15Hz - 100Hz: ±2.0% fs / ±(2.0% rdg + 10 dgt) 100kHz - 1MHz: ±2.0% fs / ±(2.0% rdg + 10 dgt) |
|
AC peak | Range | 750µA / 7.500mA / 75.0mA |
Resolution | 0,1µA / 1µA / 100µA | |
Accuracy | 15Hz - 10kHz: ±4.0% fs/ ±2.5% fs/ ±(2.0% rdg + 6 dgt)
10kHz - 100kHz: ±5.0% fs/ ±5.0% fs/ ±5.0% rdg 100kHz - 1MHz: ±5.0% fs/ ±5.0% fs/ ±5.0% rdg |
|
EUT / Monitor | Voltage | 85V - 300V |
Current | 0.5A - 20A | |
Memory | 30 settings slots | |
1000 measurement result slots | ||
Interface | RS-232C, USB Host, USB Device, LAN, Remote I/O (including BNC oscilloscope output) | |
Display | 7-inch TFT LCD touchscreen | |
Weight | 7.5 kg | |
Dimensions | 342 x 133.87 x 348.51mm |
