GW Instek GHT-115 high voltage test lead
Details

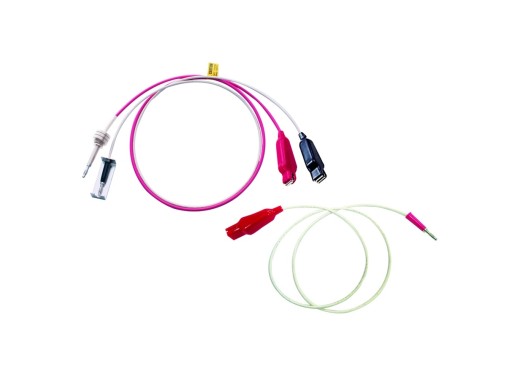

The GW Instek GHT-115 is a high voltage and continuity test lead set for the GPT-12000 and GPT-15000 series electrical safety analysers. Furthermore, the set links the analyser directly to the device under test through a red high voltage lead and a white return lead, so AC and DC withstand, insulation resistance, and continuity tests all run from a single pair of leads. Each lead ends in an alligator clip that holds the connection in place and keeps the operator clear of the device during a high voltage test.
Contact us to confirm the correct test lead for a specific GW Instek safety analyser.
Specifications
| Compatibility | GW Instek GPT-12000 and GPT-15000 series |
| Rated voltage (HV lead) | 40 kV DC |
| Rated voltage (return lead) | 20 kV DC |
| Lead length | 1000 mm |
| Connectors | Alligator clips and banana connectors |
Pros and cons
- Alligator clips hold the connection hands-free
- Direct fit on the analyser's high voltage and return terminals
- Compatible only with GPT-12000 and GPT-15000 series analysers
Downloads
| GW Instek GHT-115 datasheet |  (469.52 KB) | Download |
