GW Instek GDS-912G oscilloscope
Details

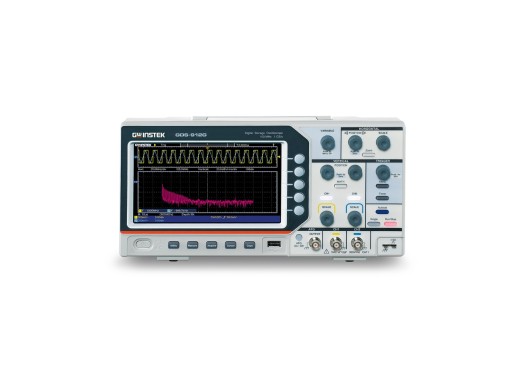

The GW Instek GDS-912G is a budget, 8-bit, high-speed, 2-channel oscilloscope that comes with a function generator. The bandwidth of this scope is 100MHz and each channel has a 1GS/s sample rate, and a 20Mpts memory depth. This makes it a great entry-level oscilloscope for education and hobbyists looking for a budget scope with good performance. Additionally, the GDS-912G can preform FFT's with 6 different window types, and the scope supports simultaneous display of the continuous and frequency time domains. The included function generator is capable of generating 7 different waveforms from 0.1Hz to 25MHz.
There are two USB connections, one to store data and the other for connecting the scope to a PC for control/data storage. The required software and drivers can be downloaded here.
| Model | GDS-912 | GDS-912G |
|---|---|---|
| Function generator |
No
|
Yes
|
| Price |
Specifications
| Bandwidth | 100 MHz |
| Channels | 2 |
| Memory depth | 20 Mpts per channel |
| Sample rate | 1 GS/s per channel |
| Vertical resolution | 8 bits |
| Vertical scale | 2 mV/div - 10 V/div |
| Horizontal scale | 2 ns/div - 1000 s/div |
| Input impedance | 1 MΩ ± 2% |
| Interfaces | USB 2.0 Host, USB storage Device |
| Display | 7" TFT LCD (800 x 480) |
| Dimensions | 301 x 152 x 70 mm |
| Weight | 1.1 kg |
AFG Specifications
| Bandwidth | 0.1 Hz - 25 MHz |
| Channels | 1 |
| Vertical resolution | 14 bits |
| Sample rate | 125 MSa/s |
| Amplitude range | 0.05 - 3 Vpp |
| Built-in functions | Sine, Square, Pulse, Ramp, Arbitrary, Exponential, Gaussian |
| Output impedance | 50 Ω |
Accessories
The GDS-912 comes with:
- 1x Power cord
- 1x USB cable
- 2x 100MHz (10:1 / 1:1) probe
- 1x BNC cable
Pros and cons
- High bandwidth of 100 MHz
- 1GS/s sample rate
- 20 Mpts per channel
- 8-bit resolution
Downloads
| GW Instek GDS-912 Datasheet |  (1.88 MB) | Download |
| GW Instek GDS-912 User Manual | (2.42 MB) | Download |
| GW Instek GDS-912 Programing Manual | (574.64 KB) | Download |
