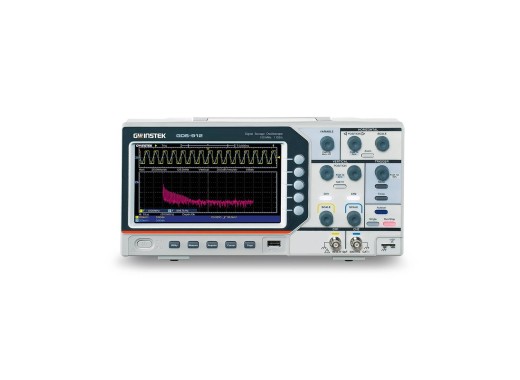

GW Instek GDS-912 oscilloscope
Details
The GW Instek GDS-912 is a budget, 8-bit, high-speed, 2-channel oscilloscope. The bandwidth of this scope is 100MHz and each channel has a 1GS/s sample rate, and a 20Mpts memory depth. This makes it a great entry-level oscilloscope for education and hobbyists looking for a budget scope with good performance. Additionally, the GDS-912 can preform FFT's with 6 different window types, and the scope supports simultaneous display of the continuous and frequency time domains.
There are two USB connections, one to store data and the other for connecting the scope to a PC for control/data storage. The required software and drivers can be downloaded here.
| Model | GDS-912 | GDS-912G |
|---|---|---|
| Function generator |
No
|
Yes
|
| Price |
Specifications
| Bandwidth | 100 MHz |
| Channels | 2 |
| Memory depth | 20 Mpts per channel |
| Sample rate | 1 GS/s per channel |
| Vertical resolution | 8 bits |
| Vertical scale | 2 mV/div - 10 V/div |
| Horizontal scale | 2 ns/div - 1000 s/div |
| Input impedance | 1 MΩ ± 2% |
| Interfaces | USB 2.0 Host, USB storage Device |
| Display | 7" TFT LCD (800 x 480) |
| Dimensions | 301 x 152 x 70 mm |
| Weight | 1,1 kg |
Accessories
The GDS-912 comes with:
- 1x Power cord
- 1x USB cable
- 2x 100MHz (10:1 / 1:1) probe
Pros and cons
- High bandwidth of 100 MHz
- 1GS/s sample rate
- 20 Mpts per channel
- 8-bit resolution
Downloads
| GW Instek GDS-912 Datasheet |  (1.88 MB) | Download |
| GW Instek GDS-912 User Manual | (2.42 MB) | Download |
| GW Instek GDS-912 Programing Manual | (574.64 KB) | Download |
