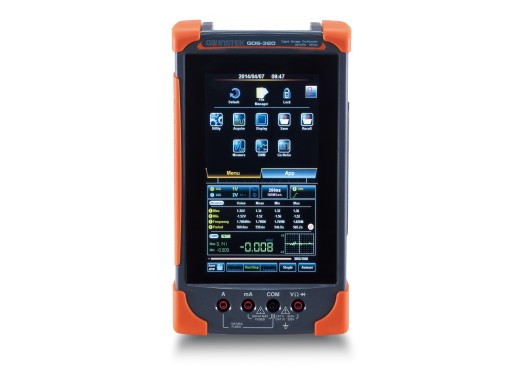

The GW Instek GDS-310 is a handheld oscilloscope with a built-in digital multimeter. The GDS-310 has 2 channels with a combined memory depth of 10 Mpts and a bandwidth of 100 MHz, which would suffice most oscilloscope measurements. The built-in digital multimeter has next to the standard AC/DC voltage and current measurements, temperature measurements, diode tests, and continuity checks. The display is also a 7" 480 x 800 capacitive touch-screen, which would suffice most actions.
Specifications
| Channels | 2 |
| Bandwidth | 100 MHz |
| Sample rate | 1 GSa/s |
| Memory depth | 5 Mpts per channel |
| Rise time | < 3.5 ns |
| Input impedance | 1 MΩ, 16 pF |
| Trigger types | Edge, Pulse Width, Video, Alternate |
| Waveform capture rate | 30 000 wfm/s |
| Vertical scale | 2 mV/div - 10 V/div |
| Horizontal scale | 5 ns/div - 100 s/div |
| Special features | Clock, Diode test, Continuity check, Engineering calculator, SMD resistance coding, Attenuator calculation software |
| Battery | Li-polymer 6100 mAh, 7.4V (Built-in) |
| Display | 7" 480 x 800 capacitive touch-screen |
| Connectivity | USB (Host/Device) |
| Dimensions | 240.2 x 136.0 x 59.7 mm |
| Weight | 1.5 kg |
Multimeter
| Range and accuracies |
|
| Specifications | Range | Best achievable accuracy |
| DC voltage (V) | 50 mV - 500 V 1000 V | ±(0.05% + 5 digits) ±(0.1% + 5 digits) |
| AC voltage (V) | 50 mV - 700 V | ±(1.5% + 15 digits) |
| DC current (A) | 50 mA - 500 mA 10 A | ±(0.1% + 0.05 mA) ±(0.5% + 50 mA) |
| AC current (A) | 50 mA - 500 mA 10 A | ±(1.5% + 15 digits) ±(3% + 15 digits) |
| Resistance (Ω) | 500 Ω - 500 KΩ
5 MΩ | ±(0.3% + 3 digits)
±(0.5% + 5 digits) |
| Temperature (C) | -50 °C to +100 °C | 0.1 °C |
|
| Input impedance | 10 MΩ |
| Counts | 50 000 |
Accessories
The GW Instek GDS-310 comes with:
- 1 x AC-DC adapter
- 1 x 150 MHz probe
- 1 x Multimeter testleads
- 1 x Wrist strap
- 1 x Soft carrying case
- 1 x Protection bag
- Declaration of traceable calibration
