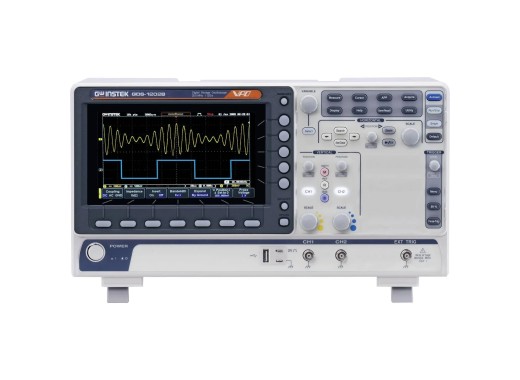

GW Instek GDS-1202B digital storage oscilloscope

The GW Instek GDS-1202B is a dual channel digital oscilloscope with exceptional features and performance at an affordable price. The oscilloscope, which is suitable for the educational market and entry-level industrial applications, has a maximum memory depth of 10M and a maximum waveform update rate of 50,000 waveforms per second. Furthermore, the GDS-1202B has a bandwidth of 200 MHz and a maximum sample rate of 1 GSa/s.

The GDS-1202B is also standard equipped with serial bus trigger and decoding function, which are often offered as an additional option with other oscilloscopes. Additionally, the oscilloscope offers a 1 million point FFT display, which provides high-resolution. The GDS-1202B also comes with zero key function, which will make sure that it is possible to quickly return to the original vertical, horizontal, and triggered positions and thus improve measurement efficiency.

The oscilloscope is capable of displaying 256 color gradients on its 7” TFT LCD display. Furthermore, the GDS-1202B is capable of connecting with the PC via the OpenWave connection software. It also has a data log, and a digital filter function as well as X-Y mode display.

Specifications

.

Bandwidth	200 MHz
Rise time	1.75 ns
Channels	2
Sample rate	1 GSa/s (Shared)
Memory depth	10M / Ch
Waveform update rate	50,000 wfm/s
Trigger types	Edge, Pulse Width, Video, Pulse Runt, Rise & Fall, Timeout, Alternate, Event-Delay(1~65535 events), Time-Delay(Duration, 4ns~10s)
Vertical resolution	8 bit
Vertical scale	1mV ~ 10V/div
Serial bus trigger and decode	I2C, UART, CAN, LIN
Horizontal scale	5 ns/div ~ 100 s/div
Automatic measurement parameters	Pk-Pk, Max, Min, Amplitude, High, Low, Mean, Cycle Mean, RMS, Cycle RMS, Area, Cycle Area, ROVShoot, FOVShoot, RPREShoot, FPREShoot, Frequency, Period, RiseTime, FallTime, +Width, -Width, Duty Cycle, +Pulses, -Pulses, +Edges, -Edges, FRR, FRF, FFR, FFF, LRR, LRF, LFR, LFF, Phase
Cursors parameters	Voltage difference between cursors ( ΔV), Time difference between cursors ( ΔT)
Display	7" 800x480 TFT LCD color display
Connectivity	USB (Host/Device), LAN, Go-NoGo BNC
Additional features	Kensington Style Lock
Dimensions	380 mm x 208 mm x 127.3 mm
Weight	2.8 kg

Accessories

The GW Instek GDS-1202B will be delivered including:

• Power cord
• Two 200MHz passive probes
• Declaration of traceable calibration

It is possible to upgrade the GDS-1000B firmware to V1.27, with this update I2C, SPI, UART, CAN / LIN Serial bus trigger and decode functions will be for free. This update can be found on the GW Instek website.
