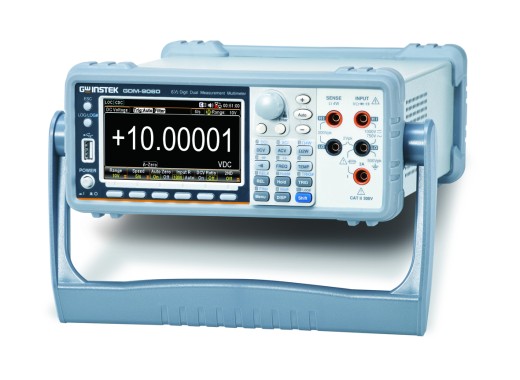

The GW Instek GDM-9060 is a 6 1/2 digit digital multimeter with extensive functionality. The meter offers a
high precision DC voltage measurement and features a total of 11 other accurate measurement functions. Furthermore, this meter also has a large number of Math- and statistical functions to simplify the analysis of data.
In addition to the standard numerical display mode, this meter also offers a wide range of graphical functions such as a
barmeter, trend graph and histogram. As a result, the measurement results are no longer just displayed as a series of numbers
but as clear graphic plots. (See 4th picture)
A very unique feature of the GW Instek digital multimeters is the ability to simultaneously
perform two different measurement functions. The functions are executed parallel to each other and the measurement results
are displayed separately as numerical values or graphs. (See 5th picture)
The GDM-9060 is equipped with USB, RS232 and LAN as standard interfaces. It is also possible to connect a GPIB interface.
Via these interfaces and the PC software it is possible to manage the meter settings via a PC.
In addition, it is also possible to observe and store the measured data on the PC.
Measurements | |||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||
Sampling rate | 1k/sec | ||||||||||||||||||||||||||||||||||||
Memory | 10k | ||||||||||||||||||||||||||||||||||||
Measuring functions | DCV, ACV, DCI, ACI, 2-/4-wire resistance, frequency, period, diode, continuity, temperature, capacity | ||||||||||||||||||||||||||||||||||||
Math functions | dB, dBm, Compare, MX+B, Percent, 1/X | ||||||||||||||||||||||||||||||||||||
Display | 6 1/2 Digit Display - 1,200,000 counts 4.3" Color TFT (480 x 272) |
||||||||||||||||||||||||||||||||||||
Connectivity | RS232C,USB Host/Device,Lan,Digital I/O | ||||||||||||||||||||||||||||||||||||
Dimensions | 267(W) x 107(H) x 302(D) mm | ||||||||||||||||||||||||||||||||||||
Weight | 3.5 kg |
The GDM-9061 is the bigger brother of the GDM-9060. The GDM-9061 has a more precise basic accuracy, greater
sampling rate and larger internal memory. The GDM-9061 can also measure up to 10A where the GDM-9060 can only measure up to 3 A.
The GDM-9061 can be found here.
Datasheet GDM-906X |
(1.75 MB) | Download |
Manual GDM-906X |
(7.19 MB) | Download |
