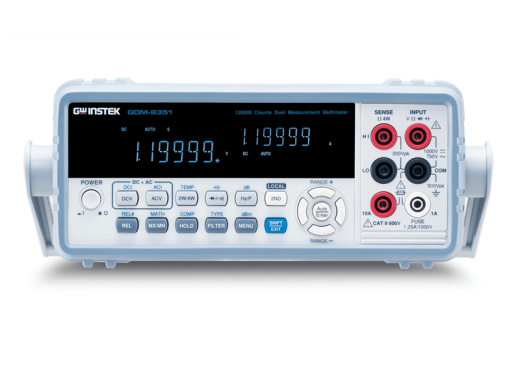

GW Instek GDM-8351 multimeter

427.5 €427.50 Excl. VAT
This product is retired
  •
Product number: ELE000979

Be the first to review this product

Lowest price guaranteed

Details

The GDM-8342 bench-top DMM by GW Instek is a high precision digital multimeter with an accuracy of 0.02% on DC-voltages. These multimeters offer a broad functionality at an affordable price.

The meters offer a variable measurement frequency. This means that the meter can be set to measure the required value from 5 times a second up to 320 times a second. The meters allow for two measurements to be done simultaneously and displayed on each of the 120.000 count displays.

The GDM-8342 can store data via the USB port in the back of the device, directly onto a computer.The meter can be used to log data directly onto a a computer. The data can easily be used through an excel add-on.

The GDM-8351 can also be controlled via the digital I/O connector. This allows for programming and usage through for example a micro controller.

Specifications

Measurement range and precision
Range Precision
Max. Voltage DC 1000 V 0.02 %
Max. Voltage AC (RMS) 750 V 0.03 % - 3.0 %
Max. Current DC 10 A 0.05 % - 0.10 %
Max. Current AC (RMS) 10 A 0.5 % - 2.0 %
Max. resistance 100 MΩ 0.10 % - 0.30 %
Max. capacitance 100 µF 2 %
Display VFD two-colour display, 2 x 50.000 counts
Connectivity RS-232C, USB device (USBCDC & USBTMC)
Dimensions 265 x 107 x 302 mm
Weight 2.9 kg

For more information the manual can be downloaded here. The driver, software, and labview can be downloaded here.

Accessories

The GDM-8351 comes bundled with:

  • CD with user manual and software
  • Security information
  • Test wires GTL-207
  • Power cord
  • Declaration of traceable calibration
