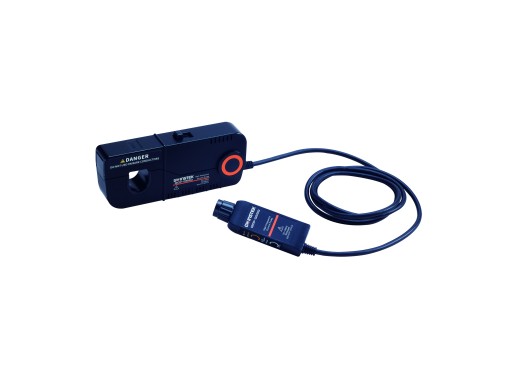

The GW Instek GCP-0550 is a professional AC/DC current probe for oscilloscopes. This probe clamps around a conductor to measure both alternating and direct current from DC up to 5MHz, at levels as high as 500A. Furthermore, this probe measures current without breaking the circuit, so live readings are straightforward.
The GCP series is compatible with a wide range of GW Instek oscilloscopes, including the GDS-3000A, GDS-3000, MPO-2000, MSO-2000EA, MDO-2000A, MDO-2000E, GDS-2000A, GDS-2000E, GDS-1000B and GDS-900 series. Each probe ships with its own power adapter, and the optional GCP-206P and GCP-425P power supplies drive several probes at once. Contact us to configure the right combination.
Model overview
| Model |
GCP-0275
|
GCP-0550
|
GCP-2525
|
| Bandwidth | DC to 2 MHz | DC to 5 MHz | DC to 25 MHz |
| Max. current | 750 A | 500 A | 250 A |
| Max. continuous current | 500 Arms | 350 Arms | 170 Arms |
| Output sensitivity | 2 mV/A or 20 mV/A | 5 mV/A or 50 mV/A | 10 mV/A or 100 mV/A |
| Min. current | 50 mA | 20 mA | 20 mA |
| Rise time | 175 ns | 70 ns | 14 ns |
| Price |
2970
€2,970.00
Excl. VAT
|
3150
€3,150.00
Excl. VAT
|
2790
€2,790.00
Excl. VAT
|
Specifications
| Isolation rating | 600 V CAT II / 300 V CAT III |
| Power source | External DC 12 V / 2 A |
| Jaw opening | 20 mm |
| Operating temperature | 0 to 50 °C |
| Dimensions | 62.28 x 151.85 x 26.4 mm |
| Weight | 380 g |
Accessories
- Power adapter with interchangeable plugs
- BNC to BNC cable with 50 Ohm terminal
Pros and cons
- 20 mm jaw clamps onto large conductors
- Low noise and low DC drift
- Powering more than one probe at a time requires the optional GCP-206P or GCP-425P supply, sold separately
Downloads
(4.31 MB)
