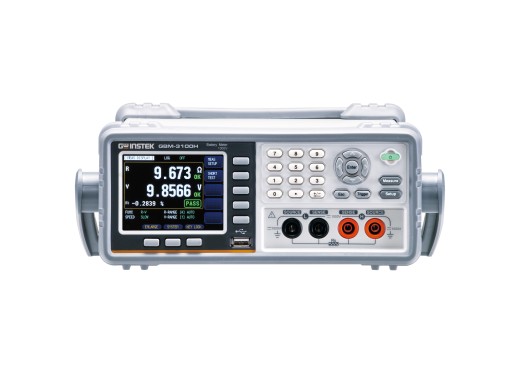

GW Instek GBM-3100H batterymeter
Details
The GW Instek GBM-3100H is the 1000V version in the GBM-3000 series battery meters.
The GW Instek range of battery meters makes it possible to measure the open circuit voltage and resistance of batteries.
These meters can be used to test both single-cell batteries and complete end products. The resistance is measured by means of a 1 kHz AC signal.
The measured values are displayed on the
3.5" LCD screen with a resolution of 6 digits for the voltage and 5 digits for the resistance. It is possible to use a
4-wire measurement to determine the resistance very accurately. These meters also have
different test speeds and have standard interfaces such as USB, RS-232C and Handler.
Models
The models within the GBM-3000 series only differ from each other in max. open circuit voltage.
| Model | GBM-3080 | GBM-3300 | GBM-3100H |
|---|---|---|---|
| Max. open circuit voltage | 80 V | 300 V | 1000 V |
| Max. Voltage measurement(DC) | 80 V ±(0.01%+0.3) | 300 V ±(0.01%+0.3) | 100 V ±(0.01%+0.3) |
| Price |
Specifications
| Digits | Voltage: 6 digits Resistance: 5 digits |
| Max. resistance measurement (AC) | 3.2 kΩ ±(0.5%+0.5) |
| Display | 3.5" TFT LCD (320x240) |
| Connections | USB host/device, RS-232C and Handler |
| Weight | 2.8 kg |
| Dimensions | 264 mm x 107 mm x 309 mm |
Accessories
The GW Instek GBM-3300 is supplied including:
- Power cord
- GBM-01, 4 wires (Kelvin clamp) test cable (max. 90V, ~ 1.1 m long)
- Declaration of traceable calibration
Downloads
| GW Instek GBM-3000 datasheet |  (376.92 KB) | Download |
| GBM-3100H-announcement | (837.35 KB) | Download |
| DTC sample | (126.04 KB) | Download |
