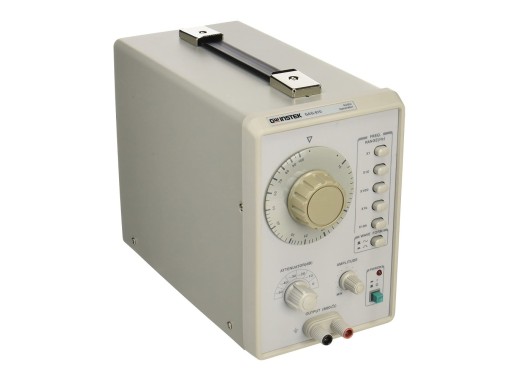

GW Instek GAG-810 audio generator
Details
The GW Instek GAG-810 audio generator is not a typical function generator. Instead of offering a display and thousands of options, it can only generate sine waves and square waves up to 1MHz.
The simple interface of the GAG-810 makes it an ideal choice for educational purposes. There are no hidden settings which the student can set incorrectly. The built-in attenuator with dB scale makes usage convenient within the audio domain, where dB is commonly used.
The device maintains minimal distortion with a factor of 0.02% or less for 500Hz to 20kHz. You will find no BNC connectors on this function generator, but only 4mm banana terminals are common in education and robust and reliable. A sync input on the rear completes this audio generator.
Specifications
| Frequency range | 10 Hz ~ 1 MHz, 5 Ranges |
| Output voltage | 5 Vrms |
| Maximum allowable input | 15 V |
| Frequency response | 10 Hz ~ 1 MHz |
| Output impedance | 600 Ω |
| Input impedance | 150 kΩ |
| Dimensions | 130 x 210 x 292 mm |
| Weight | Approx. 3 kg |
Accessories
The GAG-810 includes
- User manual
- Power cord
- Test lead GTL-103
- Declaration of traceable calibration
Pros and cons
- Specific generator for audio purposes
- Good for classroom use
Downloads
| GAG-810 Datasheet |  (110.07 KB) | Download |
| GAG-800 series user manual | (1.45 MB) | Download |
| DTC sample | (126.04 KB) | Download |
