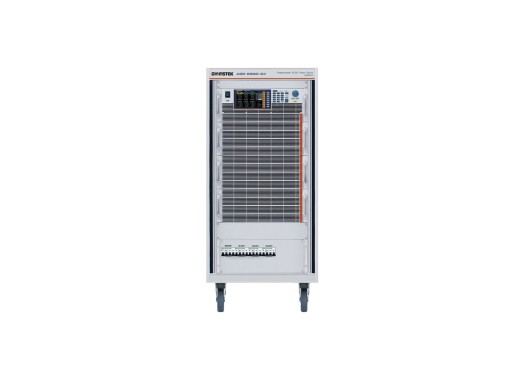

GW Instek ASR-6600-24 rack-type power supply

41575.5 €41,575.50 Excl. VAT
Loading stock info
  •
Product number: ELE008728

Be the first to review this product

Lowest price guaranteed

Details

The GW Instek ASR-6600-24 rack type power supply is part of the high-end ASR-6000 series. This power supply is built to handle whatever you may throw at it, from being used in a server handling critical information with no room for downtime to scientific research. The ASR-6600-24 supports single/three-phase AC input and output as well as DC power output. The power supply offers up to 24kW output, programmable output impedance adjustment, dual-channel voltage/current output monitoring, supports 1P2W, 1P3W, and 3P4W output. It also has a powerful arbitrary waveform editing and output function, capable of editing and outputting tens of thousands of waveforms and 100th order harmonic measurement functions. This power supply can emulate more diverse power environment changes, such as balanced three-phase and unbalanced three-phase, phase loss, and features a multi-channel output function that can test up to three DUTs at the same time.

Model overview

Model Total power Current range Price
ASR-6450-09 9 kW Single-phase output: 90 A / 45 A
Polyphase output: 30 A / 15 A		 19840.5 €19,840.50 Excl. VAT
ASR-6450-13.5 13.5 kW Single-phase output: 135 A / 67.5 A
Polyphase output: 45 A / 22.5 A		 26455.5 €26,455.50 Excl. VAT
ASR-6600-12 12 kW Single-phase output: 120 A / 60 A
Polyphase output: 40 A / 20 A		 24565.5 €24,565.50 Excl. VAT
ASR-6600-18 18 kW Single-phase output: 180 A / 90 A
Polyphase output: 60 A / 30 A		 33070.5 €33,070.50 Excl. VAT
ASR-6600-24 24 kW Single-phase output: 240 A / 120 A
Polyphase output: 80 A / 40 A		 41575.5 €41,575.50 Excl. VAT
ASR-6600-30 30 kW Single-phase output: 300 A / 150 A
Polyphase output: 100 A / 50 A		 50085 €50,085.00 Excl. VAT
ASR-6600-36 36 kW Single-phase output: 360 A / 180 A
Polyphase output: 120 A / 60 A		 58590 €58,590.00 Excl. VAT

Accessories

The GW Instek ASR-6600-24 includes:

  • Input terminal cover
  • Output terminal cover
  • Copper plate for delta connection input (Mark 1)
  • Copper plate for single phase and Y connection input (Mark 2)
  • Copper plate for delta connection input (Mark 3)
  • Copper plate for 1P output (Mark 4)
  • GRA-451-E rack mount adapter (EIA)
  • USB cable
  • Power cord
  • Declaration of traceable calibration

Downloads

ASR-6000_4-6U_parallel - Datasheet
pdf (128.35 KB)Download
ASR-6000-Rack type - User manual
pdf (3.59 MB)Download
