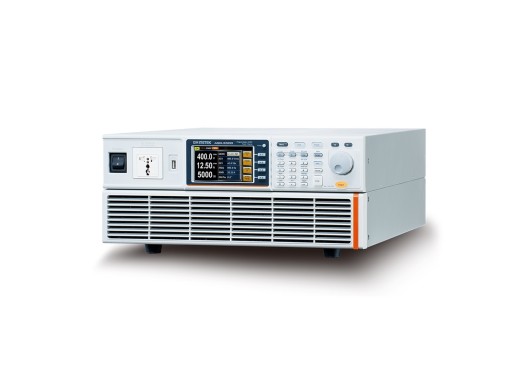

GW Instek ASR-3500 power supply (EU)
Details
The GW Instek ASR-3500 programmable AC/DC lab power supply is highly suitable for developing and testing onboard chargers, server powers, LED modules, AC motors, AC fans, automotive equipment and household appliances.
This model features an EU plug
Model overview
The ASR-3000 power supply series differ in total power, current output capacity and output frequency.
| Model | ASR-3200 | ASR-3300 | ASR-3400 | ASR-3500 | ASR-3400HF |
|---|---|---|---|---|---|
| Total power | 2.000 W | 3.000 W | 4.000 W | 5.000 W | 4.000 W |
| Max output current (Low/High) | 20 / 10 A | 30 / 15 A | 40 / 20 A | 50 / 25 A | 40 / 20 A |
| Output frequency (AC mode) | 40 - 999.9 Hz | 40 - 999.9 Hz | 40 - 999.9 Hz | 40 - 999.9 Hz | 40 - 5000 Hz |
| (AC + DC mode) | 1.0 - 999.9 Hz | 1.0 - 999.9 Hz | 1.0 - 999.9 Hz | 1.0 - 999.9 Hz | 1.0 - 5000 Hz |
| Price |
Specifications
| Ripple | 1 Vrms (5 Hz -1 MHz DC mode) |
| Measuring possibilities | Vrms, Vavg, Vpeak, Irms, Iavg, Ipeak, IpkH, P, S, Q, PF, CF, 100th-order Voltage Harmonic and Current Harmonic. |
| Protection | UVP, OCP, OPP, OTP, Fan Fail detection |
| Interfaces | USB, LAN, RS-232, GPIB, Ext. I/O, Ext. signal input |
| Memory | 16 slots, 4096 words |
| Display | 4.3" LCD |
| Dimensions | 430 x 176 x 530 mm |
| Weight | 25 kg |
Accessories
The GW Instek ASR-3000 series is supplied including:
- Input terminal cover
- Output terminal cover
- GRA-442-E rack mount adapter
- GTL-246 USB cable
- Declaration of traceable calibration
Downloads
| GW Instek ASR-3000 Datasheet |  (113.91 KB) | Download |
| GW Instek ASR-3000 Manual | (8.4 MB) | Download |
| DTC sample | (126.04 KB) | Download |
