GW Instek AFG-4125AE function generator
Details

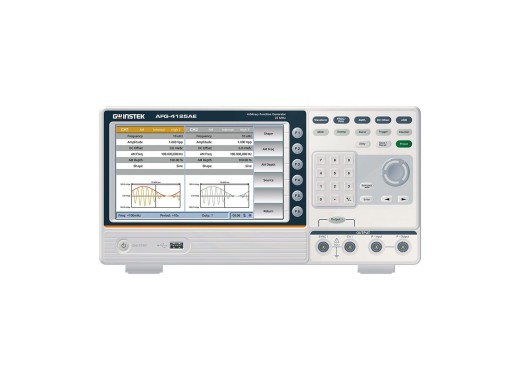

The GW Instek AFG-4125AE is a single-channel function generator with a maximum bandwidth of 25MHz and a sample rate of 125MSa/s. As part of the entry-level budget models of the GW Instek AFG-4000 series, it features a high resolution of 14 bits and a small memory depth of 16kpts per channel. The AFG-4125AE also has multiple waveform outputs such as sine, triangle, square, ramp, pulse, noise, arb, and harmonic. The AFG-4125AE is the only one in the AFG-4000 series which features a built-in power amplifier, with a power output of 10W and an amplification factor of 10x to reach a maximum output of 22V. The generator is multifunctional and includes many features such as a sweep, burst, counter function, and multiple analog and digital modulation modes. The AFG-4125AE also has a waveform editing function with 146 arbitrary built-in waveforms for editing and output. The device features a 8" LCD, making waveforms easily readable. Furthermore, the device features USB host/device interfaces for communication.
Model overview
| Model | AFG-4125E | AFG-4125AE | AFG-4225E | AFG-4235 | AFG-4260 | AFG-4280 | AFG-4210H | AFG-4225H |
|---|---|---|---|---|---|---|---|---|
| Bandwidth | 25 MHz | 25 MHz | 25 MHz | 35 MHz | 60 MHz | 80 MHz | 100 MHz | 250 MHz |
| Channels | 1 | 1 | 2 | 2 | 2 | 2 | 2 | 2 |
| Vertical resolution | 14 bit | 14 bit | 14 bit | 16 bit | 16 bit | 16 bit | 16 bit | 16 bit |
| Sample rate | 125 MSa/s | 125 MSa/s | 125 MSa/s | 500 MSa/s | 500 MSa/s | 500 MSa/s | 500 MSa/s | 1.25 GSa/s |
| Waveform length | 16 kpts | 16 kpts | 10 Mpts | 10 Mpts | 10 Mpts | 10 Mpts | 10 Mpts | 10 Mpts |
| Touchscreen | No |
No |
No |
Yes |
Yes |
Yes |
Yes |
Yes |
| Price |
Specifications
| Frequency resolution | 1 µHz |
| Amplitude range | 1 mVpp - 10 Vpp |
| Modulation | AM, DSB-AM, FM, PM, PWM, ASK, PSK, BPSK, QPSK, FSK, 3FSK, 4FSK, OSK, SUM |
| Built-in functions | Sine, Square, Triangle, Ramp, Pulse, Noise, Harmonic, ARB |
| Output impedance | 50 Ω |
| Interfaces | USB host/device |
| Display | 8" TFT LCD (800x480) |
| Dimensions | 340 x 177 x 90 mm |
| Weight | 2.5 kg |
Accessories
The GW-Instek AFG-4125AE comes with the following accessories:
- 1x BNC to Alligator clip cable
- Power cord
- USB cable
- Declaration of traceable calibration
Pros and cons
- 14 bit vertical resolution
- Waveform editing function
- Built-in power amplifier
- Only has 16Kpts memory length
Downloads
| GW Instek AFG-4000 - User manual |  (4.04 MB) | Download |
| GW Instek AFG-4000 - Datasheet | (1.62 MB) | Download |
| DTC sample | (126.04 KB) | Download |
