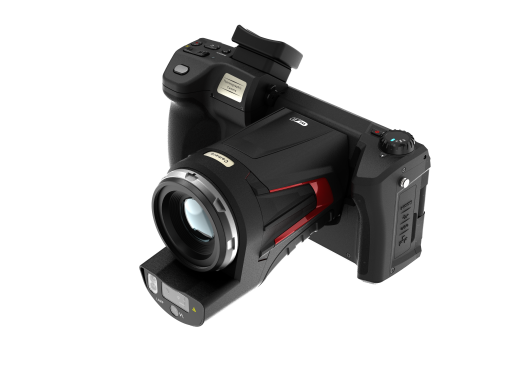

Guide PS800 thermal camera (1024x768 and 30 mK)

29999 €29,999.00 Excl. VAT

This product is retired

Product number: ELE008703

Lowest price guaranteed

Details

The Guide IR PS800 thermal camera with a rotatable screen can measure the temperature in a wide range of -40°C-800°C and has an extremely high IR resolution of 1024 x 768 pixels. With its rotatable lens, the PS800 can make both high-quality photos and videos which can be transferred via Wi-Fi to your device for further analysis. The video material can be captured in MP4 format with audio or in lrgd format for temperature analysis. Moreover, this thermal camera provides a very fast operation by using the focus motor and professional laser rangefinder to achieve autofocus in only 0.4 seconds. The PS800 also has AI voice recognition and provides four image modes: IR, visible light, PIP, and MIF. Finally, to achieve high-quality imaging, the infrared pixel count can be increased to 4 times its original value.

Additional accessories for the PS800 can be ordered by contacting Eleshop.

Contact information

For tutorials on the Thermotools software, the Guide Youtube account, seen here, contains many videos on how to use the software.

Specifications

Temperature range	-40 to 800 °C
Accuracy	±2 °C or ±2% (whichever is greater)
Focal distance	28 mm
IR resolution	1024 x 768 (786432 pixels)
NETD	≤30 mK
Frame rate	30 Hz / 9 Hz
FOV	25° x 19°
External interface	Type-C, DC (12V), SD card slot, Network port, Micro HDMI, UNC ¼ "-20 (Tripod mounting)
Laser	630~670nm, Class 2 laser, ＜1mW, indicating the measured target and laser ranging
Display	5" LCD touch (rotatable and tiltable)
Colour palettes	White Hot, Iron Red, Arctic, Rainbow 2, Hot Iron, Rainbow 1, Fulgurite, Medical, Tint, Black, Hot, Customized
Storage	Local storage (64 GB) and SD card (64 GB and up to 128 GB)
Battery	≥4 hours
Dimensions	206 × 145 × 135 mm
Weight	1.35 kg (with battery)
