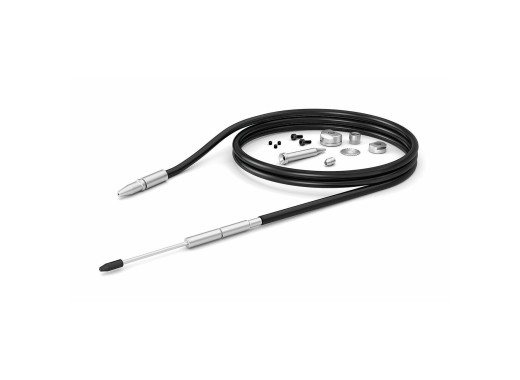

The guide kit is for the JBC ALE soldering station. With this guide kit, you can feed a different diameter of soldering tin to the JBC ALE. Note that a kit with perforation is specified for one diameter, and a kit without perforation has a diameter range.
Model overview
With perforation
| Name |
Diameter (mm) |
| GALE08V |
0.8 |
| GALE10V |
1.0 |
| GALE12V |
1.2 |
| GALE15V |
1.5 |
| GALE16V |
1.6 |
Without perforation
| Name |
Diameter (mm) |
| GALE04D |
0.38 - 0.40 |
| GALE05D |
0.46 - 0.56 |
| GALE06D |
0.60 - 0.64 |
| GALE07D |
0.70 - 0.78 |
| GALE08D |
0.80 - 0.82 |
| GALE10D |
0.90 - 1.10 |
| GALE12D |
1.14 - 1.27 |
| GALE15D |
1.50 - 1.57 |
| GALE16D |
1.60 - 1.63 |
| GALE18D |
1.8 |
