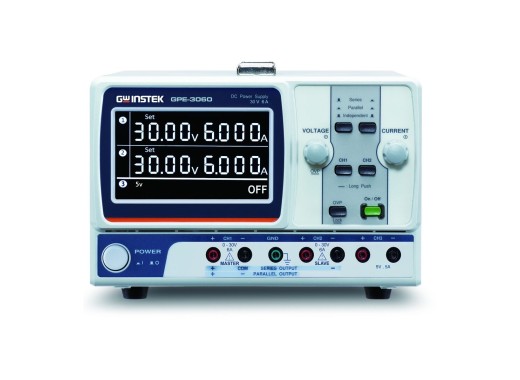

GW Instek GPE-3060 power supply
Details
The GPE-3060 belongs to the GW Instek GPE series of affordable and compact power supplies. It has good specifications such as high resolution, high reliability and low noise. Furthermore, the power supply can be controlled via an analogue remote control I/O connector. The power supplies are also equipped with a key lock function that protects the DUT by preventing others from changing the voltage/current parameters.
For the multi-channel power supplies, the GPE series offers serial and parallel connection functions, in addition to the independent output channels. This allows the output voltage to be extended to 60V/6A (series) and the output current to 30V/12A (parallel).
Model overview
| Model | Total power | Outputs | Voltage range | Current range | Price |
|---|---|---|---|---|---|
| GPE-2323 | 192 W | 2 | CH1+CH2: 0 - 32 V | CH1+CH2: 0 - 3 A | |
| GPE-3060 | 385 W | 3 | CH1+CH2: 0 - 30 V CH3: 5 V | CH1+CH2: 0 - 6 A CH3: 5 A | |
| GPE-3323 | 217 W | 3 | CH1+CH2: 0 - 32 V CH3: 5 V | CH1+CH2: 0 - 3 A CH3: 5 A | |
| GPE-4323 | 212 W | 4 | CH1+CH2: 0 - 32 V CH3: 0 - 5 V CH4: 0 - 15 V | CH1+CH2: 0 - 3 A CH3+CH4: 0 - 1 A | |
| GPE-6030 | 385 W | 3 | CH1+CH2: 0 - 60 V CH3: 5 V | CH1+CH2: 0 - 3 A CH3: 5 A |
Specifications
| Output switch | All channels |
| Resolution | 10 mV /1 mA |
| Ripple | ≤ 1 mVrms / 3 mArms |
| Protection | OPP, OCP, OVP |
| Display | 4.3" TFT LCD Display |
| Dimensions | 210 x 155 x 306 mm |
| Weight | 8.7 kg |
Specifications
Accessories
The GPE series power supplies come with the following accessories:
- Testleads
- Power cord
- Declaration of traceable calibration
Downloads
| GW Instek GPE-3060 & 6030 datasheet |  (1.17 MB) | Download |
| GW Instek GPE-3060 & 6030 user manual | (1.89 MB) | Download |
| DTC sample | (126.04 KB) | Download |
