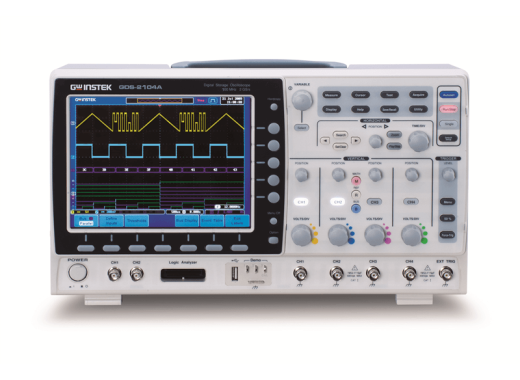

GW Instek GDS-2204A oscilloscope
Details
The GDS-2204A by GW Instek is a digital oscilloscope with a bandwidth of 200 MHz and has 4 channels. Unique to the GDS-2000A series is that it is equipped with a high sample rate of 2 GSa/s. This oscilloscope also has VPO (visual persistence oscilloscope) technology, which makes the update rate up to 80 000 waveforms per second. Furthermore, the GDS-2204A is equipped with an 8" colour screen, which is easy to read. With a memory depth of 2 Mega points per channel, long signals can also be displayed.
Connectivity
The oscilloscopes can be connected to a computer with USB and LAN to store the measured data. It is also possible to log the data for a longer period of time and save it to a USB stick in CSV format, for example.
Specifications
| Bandwidth | 200 MHz |
| Channels | 4 |
| Sampling rate | 2 GSa/s |
| Memory | 2 Mpts per channel |
| Rise time | 1.75 ns |
| Display | 8" TFT LCD SVGA color display(LED Back-light), 800x600 pixels |
| Input impedance | 1 MΩ // 16 pF |
| Horizontal scale | 1 ns/div - 100s/div |
| Vertical resolution | 1 mV/div - 10 V/div |
| A/D converter | 8 bits resolution |
| Maximum voltage | 300V RMS, CAT I |
| Waveform capture rate | up to 80 000 wfm/s |
| Connections | USB 2.0 type A, USB 2.0 type B, LAN, Go-NoGo output, RS-232C |
| Weight (without box) | 4.2 kg |
| Dimensions | 384 x 220 x 145 mm |
Accessories
The GDS-2204A is delivered with:
- Quick start guide
- Cd with manual
- Power cord
- 4 probes, 1 per channel
The PC software and the drivers can be downloaded free of charge from the GW Instek website.
Downloads
| GDS-2000A series datasheet |  (732.04 KB) | Download |
| GDS-2000A series manual | (7.76 MB) | Download |
| DTC sample | (126.04 KB) | Download |
